How to Connect Two 12V Batteries in Parallel

Connecting two 12V batteries in parallel is a common way to increase your available battery capacity while keeping your system at 12 volts. This type of setup is popular in 4WDs, caravans, campers, boats and off-grid applications where longer run time is needed without changing the system voltage.

For example, if you connect2 x 12V 120Ah batteries in parallel, the result is: 12V 240Ah

This means the voltage stays the same at 12V, but the available amp-hour capacity doubles, giving you more stored power for running fridges, lights, pumps, inverters and other accessories.

What Does Connecting Batteries in Parallel Mean?

A parallel battery connection joins:

• Positive to positive
• Negative to negative

This keeps the system voltage the same while increasing total capacity.

Example:

• 1 x 12V 120Ah battery =12V 120Ah
• 2 x 12V 120Ah batteries in parallel = 12V 240Ah

This is different to a series connection, where voltage increases and capacity stays the same.

Why Connect Two 12V Batteries in Parallel?

There are several reasons why people choose to connect batteries in parallel:

• Increase battery capacity
• Extend run time for appliances and accessories
• Maintain a 12V system
• Support larger loads over a longer period
• Build a more practical power setup for touring, camping, boating or backup power

For many users, a 12V system is ideal because most common accessories and charging equipment are designed to operate on 12V.

Parallel Battery Connection Example

If you are using twoTrolltek™ 12V 120Ah lithium batteries, connecting them in parallel gives you:

2 x 12V 120Ah = 12V 240Ah

This provides double the amp-hour capacity compared to a single battery, while still supplying 12V power to your system.

How to Connect Two 12V Batteries in Parallel

To connect two 12V batteries in parallel:

1. Place the batteries side by side.
2. Connect a cable from thepositive terminal of Battery 1 to the positive terminal of Battery 2.
3. Connect a cable from the negative terminal of Battery 1 to the negative terminal of Battery 2.
4. Connect your system's positive output to the positive side of the battery bank.
5. Connect your system's negative output to the negative side of the battery bank.

This creates one larger 12V battery bank.

Parallel Wiring Diagram

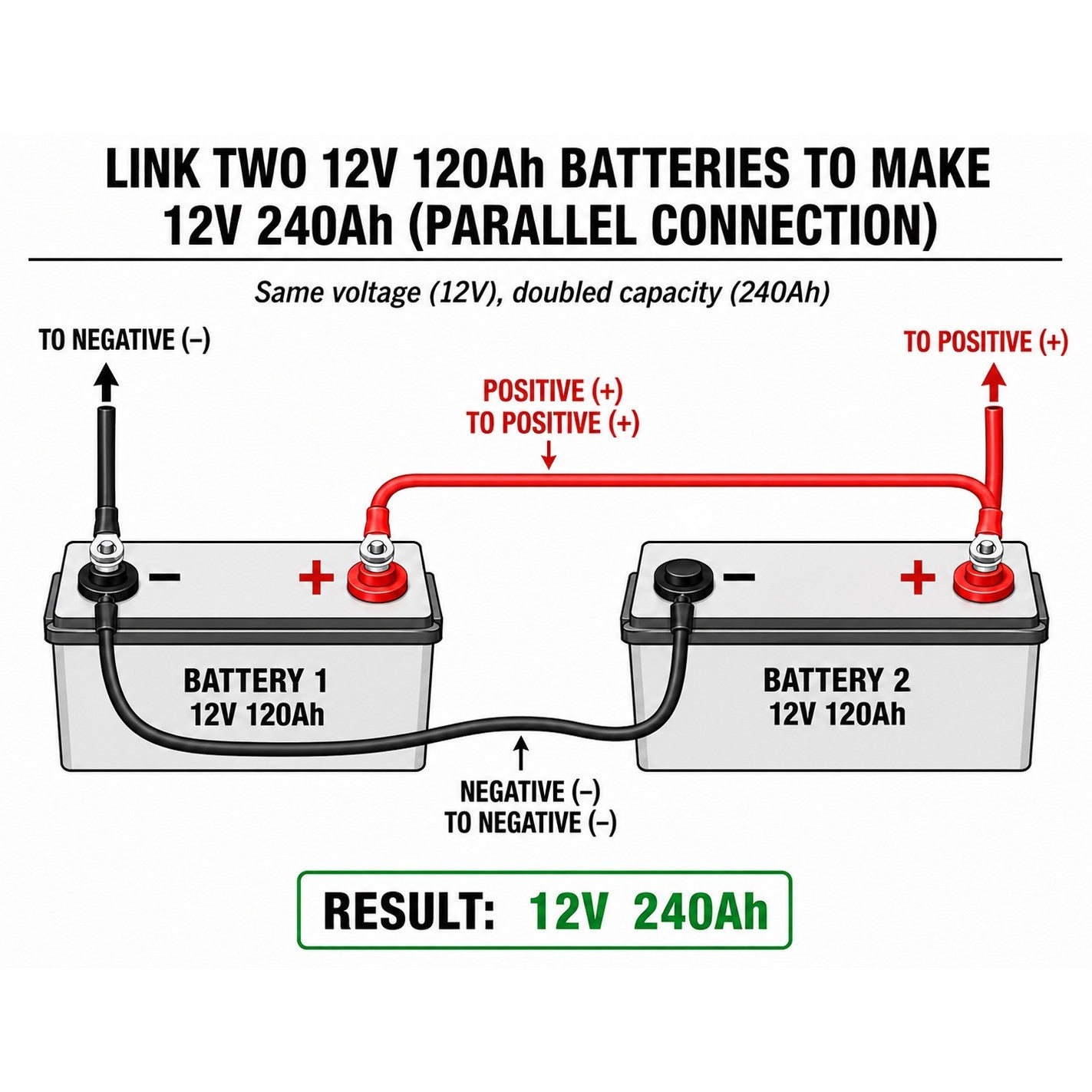

Example: 2 x 12V 120Ah batteries connected in parallel = 12V 240Ah

This diagram shows the correct parallel connection layout, with positive linked to positive and negative linked to negative.

What Happens to Voltage and Capacity?

When batteries are connected in parallel:

• Voltage stays the same
• Amp-hour capacity increases

In this example:

• Battery voltage = 12V
• Total capacity = 240Ah

This gives you more usable stored energy while remaining compatible with 12V appliances, chargers and accessories.

Important Tips Before Connecting Batteries in Parallel

Before linking batteries together, there are a few important things to keep in mind.

Use Matching Batteries

For best results, the batteries should be:

• The same voltage
• The same capacity
• The same chemistry
• The same brand and model where possible
• At a similar state of charge before connection

Using mismatched batteries can lead to uneven charging and discharging, reduced performance and potential battery issues.

Check Series / Parallel Compatibility

Always confirm the battery is suitable for parallel connection. While many lithium batteries can be connected this way, it is important to follow the manufacturer's specifications and any BMS limitations.

Use Suitable Cables

Use quality battery linking cables with the correct current rating and terminal size. Undersized cables can create resistance, heat and voltage drop.

Protect the Circuit

Appropriate fusing or circuit protection should always be used as part of the installation. This helps protect the battery system and connected equipment.

Secure the Batteries Properly

Make sure the batteries are mounted securely and protected from vibration, impact, heat and moisture where applicable.

Benefits of a Parallel Battery Setup

A parallel battery system can offer several advantages:

• Longer run time for 12V appliances
• More available stored power
• Greater flexibility for touring and camping setups
• Retains compatibility with standard 12V systems
• Ideal for boats, caravans, 4WDs and off-grid use

For users wanting more capacity without changing to a higher voltage system, a parallel setup is often the most practical option.

Common Applications for Parallel Battery Banks

Connecting two 12V batteries in parallel is commonly used in:

• 4WD dual battery and touring setups
• Camper trailers and caravans
• Boats and marine power systems
• Off-grid solar systems
• Backup power applications
• Portable power systems

Common Mistakes to Avoid

When connecting batteries in parallel, avoid these common mistakes:

• Connecting the wrong terminals
• Mixing different battery types or sizes
• Joining batteries with significantly different charge levels
• Using cable that is too small
• Failing to use circuit protection
• Assuming all lithium batteries can be connected together without checking specifications

A little care during setup can help ensure safe operation and better battery performance.

Final Thoughts

Connecting two 12V batteries in parallel is a simple and effective way to increase battery capacity while keeping your system at 12V. In the example above,2 x 12V 120Ah batteries connected in parallel give you 12V 240Ah, making it a great option for users who need longer run times and greater stored energy.

As always, make sure you use compatible batteries, suitable cabling and proper installation practices.

If you're unsure about your battery setup, consult a qualified auto electrician, marine electrician or installer.
