A basic system needs a solar panel or array, a solar charge controller matched to the battery chemistry and voltage, correctly sized cable, suitable connectors and circuit protection. The controller sits between the panels and the battery and regulates the charge; the panels should not be connected directly to a LiFePO4 battery. For camping or occasional use, start by estimating daily energy consumption and choose enough panel capacity to replace that energy during the available sunlight. Fixed panels are convenient on caravans and boats, while portable panels can be positioned away from shade. If the battery is also charged from a vehicle or 240V mains, solar can be sized as one part of the overall charging strategy rather than as the only recovery source.

Only through a controller and array configuration that supports the required conversion. The marketing description '12V panel' or '24V panel' does not mean the panel produces a fixed 12V or 24V; its operating and open-circuit voltages are higher. The solar controller must be compatible with both the panel array voltage and the battery bank voltage. Some controllers can automatically detect 12/24V battery systems, while others are designed for a specific voltage. For 36V or 48V battery banks, a suitable higher-voltage controller and correctly configured array may be required. Always design from the actual panel Voc/Vmp figures and the controller's maximum PV input specifications rather than connecting components based only on their nominal labels.

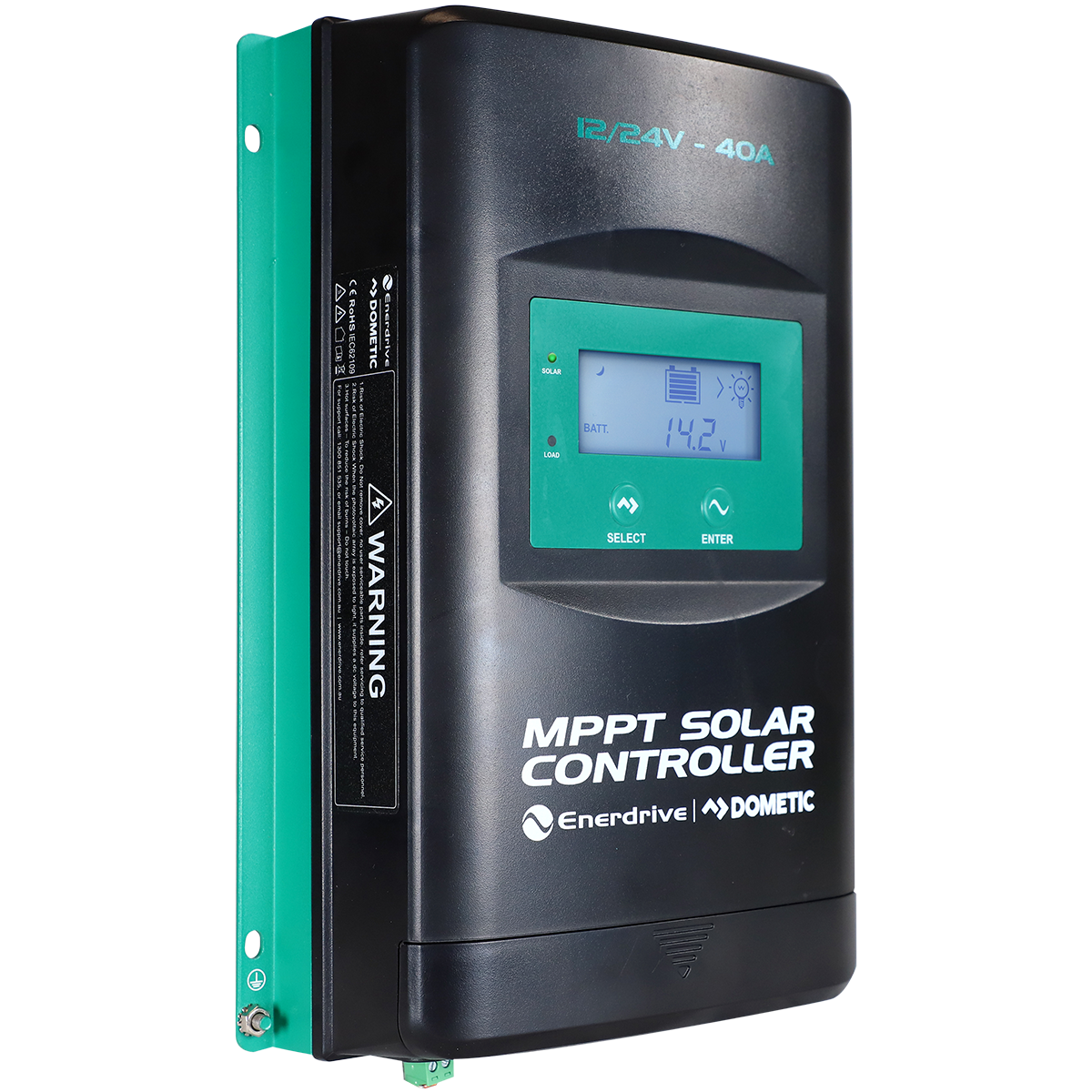

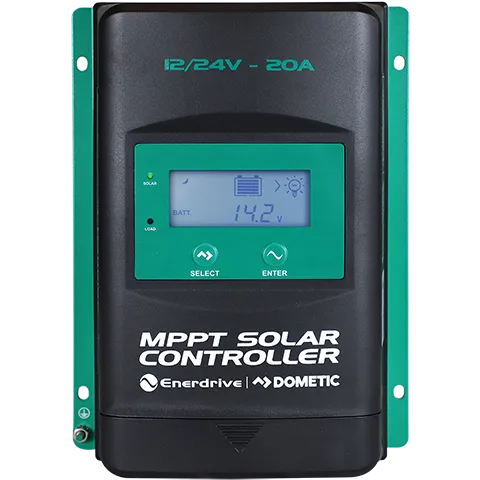

An MPPT controller continually adjusts the electrical operating point of the array to extract useful power as sunlight, panel temperature and battery voltage change. This is particularly valuable where the panel voltage is substantially above battery voltage or where the system needs to make the most of limited roof area. It does not eliminate losses from heavy shade, poor panel orientation or undersized wiring, but it can improve how effectively available panel power is converted into charging current. When selecting an MPPT unit, check its maximum PV open-circuit voltage, current or wattage limits and supported battery voltages. The controller should also provide a charging profile appropriate for the Trolltek LiFePO4 battery or allow the required charge settings to be entered.

Yes, if the solar controller is correctly configured for LiFePO4 and the installation is designed for continuous connection. A proper controller regulates the battery voltage rather than continually forcing full panel output into the battery. Check the controller's lithium settings and avoid lead-acid equalisation modes unless the battery manufacturer specifically permits them. Long-term installations should have secure weatherproof connections, suitable fusing and a method of isolation for service work. If the vehicle, boat or caravan is stored for months, also account for parasitic loads such as displays, trackers or electronics. Periodically check the battery state through the Trolltek app and inspect the solar system for shading, damaged cables, loose connections or contaminated panel surfaces.

Reduce shade first. Even a relatively small shadow across part of a panel can significantly reduce power. Keep the panel surface clean, provide airflow behind fixed panels where possible and position portable panels so they face the sun rather than lying flat simply for convenience. Minimise cable length and use adequate conductor size to reduce voltage drop between the array, controller and battery. Make sure the charge controller is not undersized and is set to the correct battery chemistry. When comparing performance, remember that panel nameplate power is measured under laboratory test conditions; hot panels typically produce less than their rated wattage. The most useful measure is whether the system consistently replaces the energy your loads consume over a typical day.
