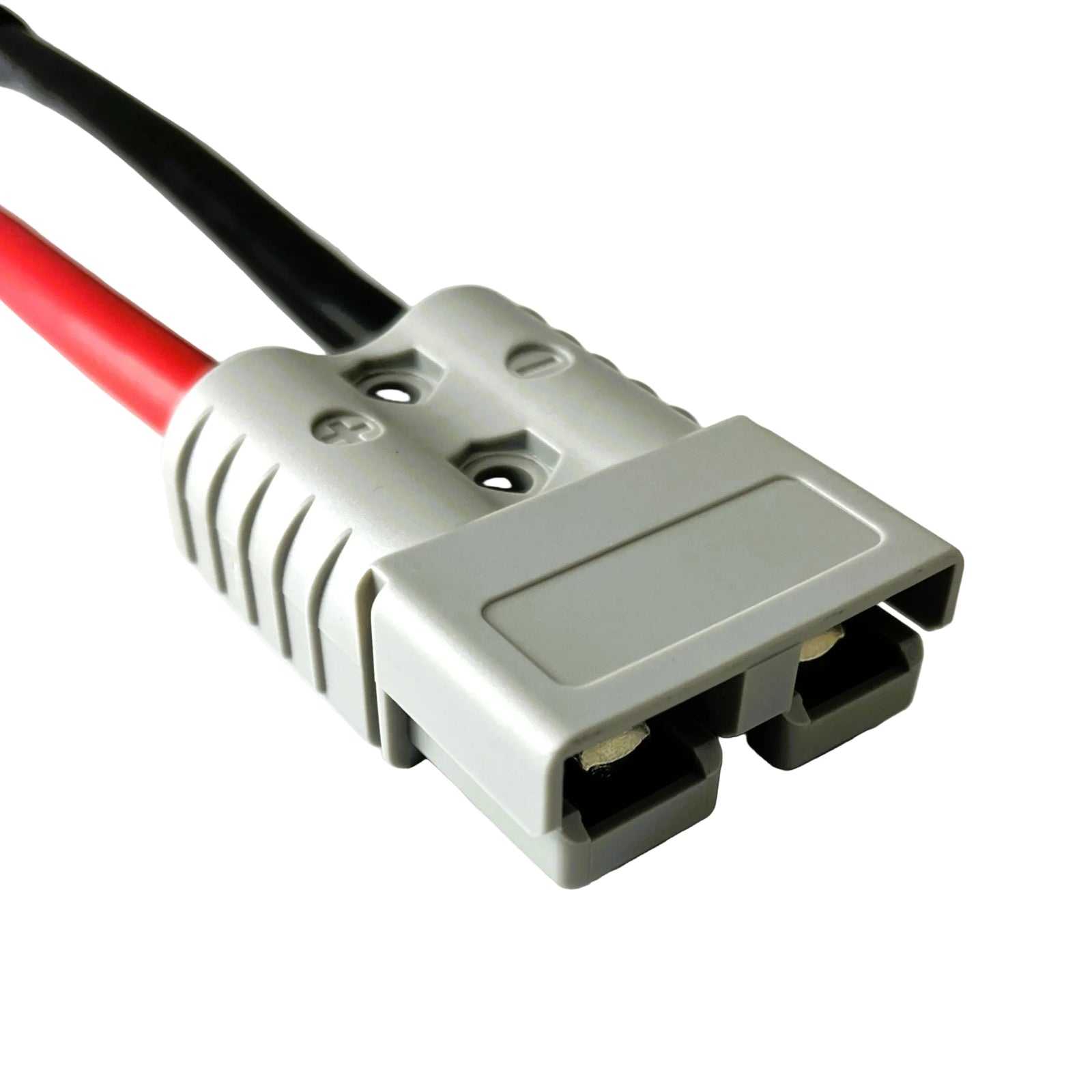

Size battery cables from the maximum current the circuit can carry, the cable run length and the allowable voltage drop. High-current loads such as inverters, trolling motors and large DC/DC chargers often require much heavier cable than lights, pumps or electronics. Connector ratings must also meet or exceed the expected continuous current; the current rating of an Anderson-style connector, fuse holder or isolation switch can become the weak point even when the cable is large enough. Keep high-current cable runs as short as practical and use correctly crimped lugs rather than improvised connections. For parallel battery links, use equal-length cables where practical so current shares evenly. Always protect positive conductors with appropriately located fusing or circuit protection sized to protect the cable and connected equipment.

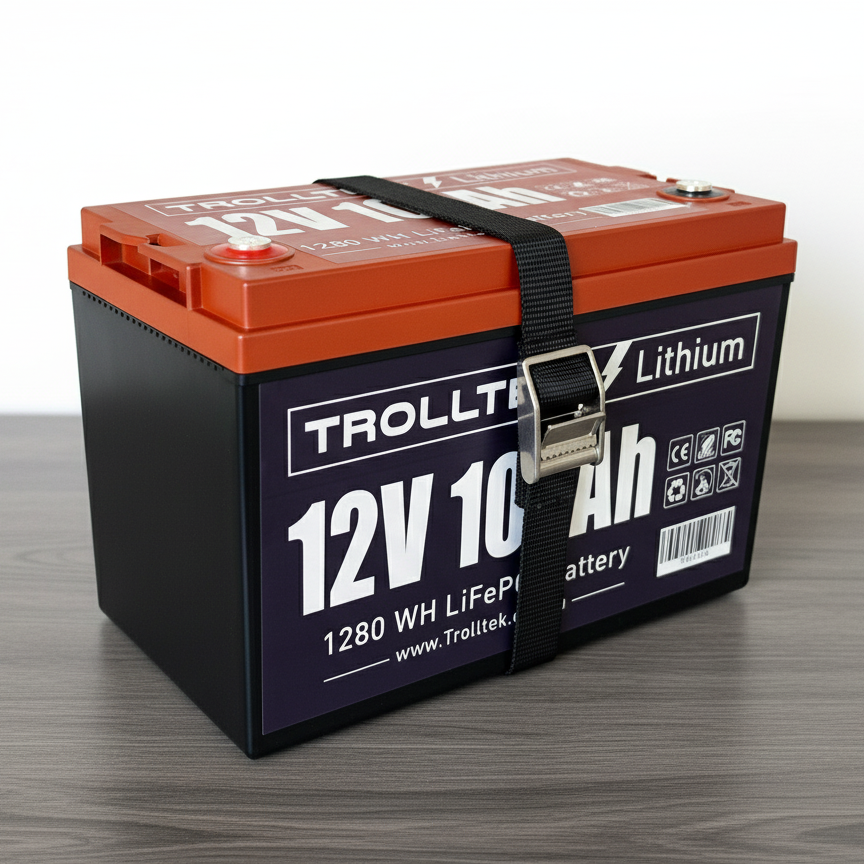

A battery can be damaged by repeated movement even when the casing looks robust. In boats, trailers, 4WDs and caravans, vibration and impact can place significant loads on terminals, cable lugs and the internal structure of the battery. A properly sized tray or tie-down restrains the battery without crushing the case and prevents the terminals from becoming structural mounting points. The mounting system should suit the battery dimensions and installation orientation and should be anchored to a solid structure, not thin trim or unsupported sheet metal. Leave enough clearance for cables so they do not rub or pull as the vehicle or boat moves. After the first few trips, recheck mounting hardware and cable strain because new installations can settle.

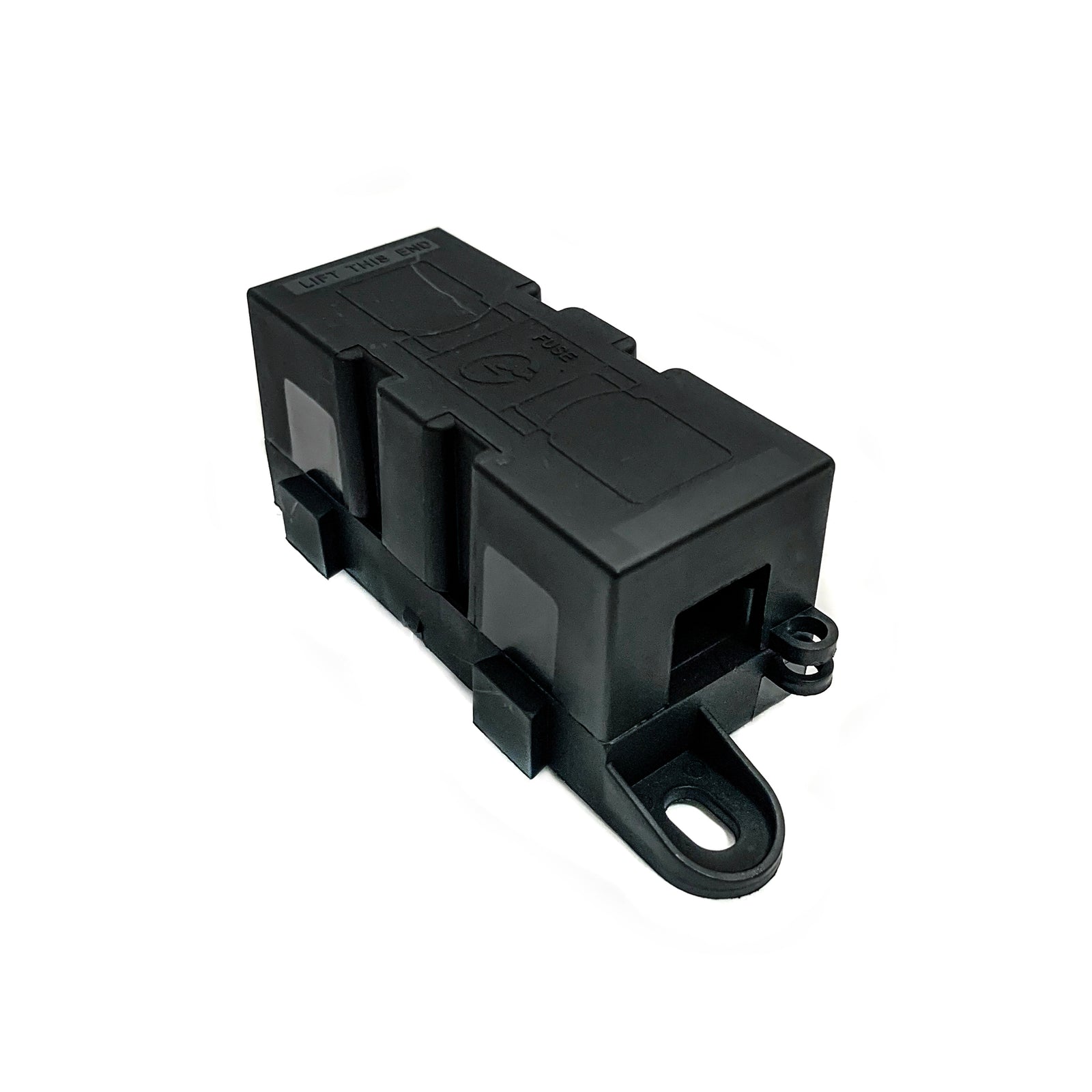

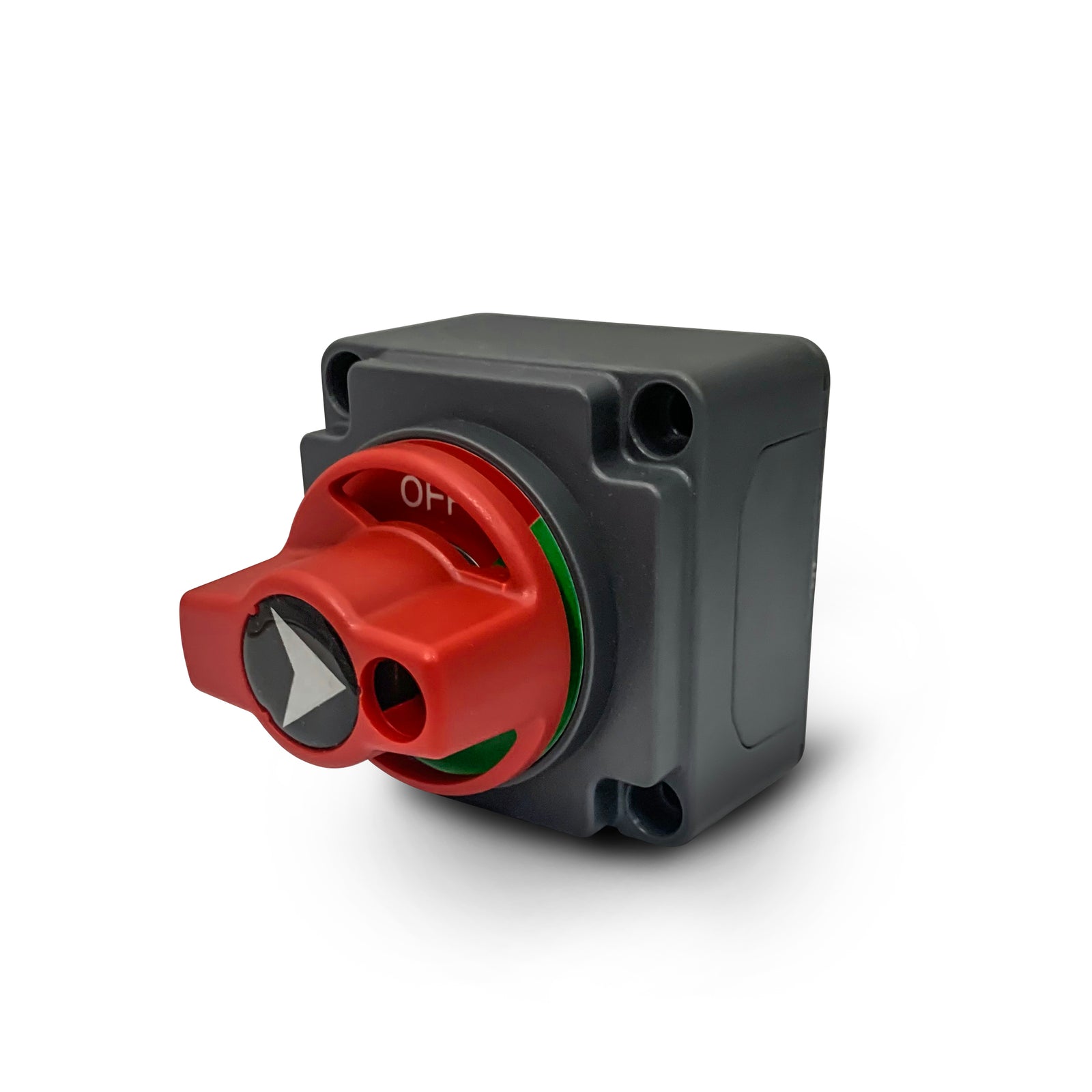

A main battery fuse should generally be installed as close as practical to the positive battery connection so the cable is protected if it shorts to the chassis or another conductor. Each downstream circuit may then require its own appropriately rated protection. An isolation switch should be accessible and rated for the system's DC voltage and expected current, including any high surge current where relevant. Never assume a high amp rating for AC service is automatically equivalent in a DC installation because interrupting DC current is more demanding. In multi-battery systems, the isolation and fuse arrangement should allow individual fault protection without leaving unprotected linking cables. Marine, vehicle and caravan installations can have additional regulatory requirements, so the complete protection layout should be considered rather than adding a fuse only at the load.

Only when the cable, plugs, contacts and protection devices are specifically rated for the current and length involved. Every additional connector introduces resistance and another possible failure point. Long extension cables also increase voltage drop, which can be significant on 12V systems. Splitters are useful for distributing power to suitable loads, but the combined current drawn by both branches must remain within the rating of the common cable, connector and upstream fuse. Do not use a 50A connector to supply loads that can collectively exceed 50A simply because each branch is individually smaller. Inspect plugs for heat discolouration, looseness or corrosion, particularly in marine environments. If a connector repeatedly becomes warm, treat that as a fault to be corrected rather than normal behaviour.

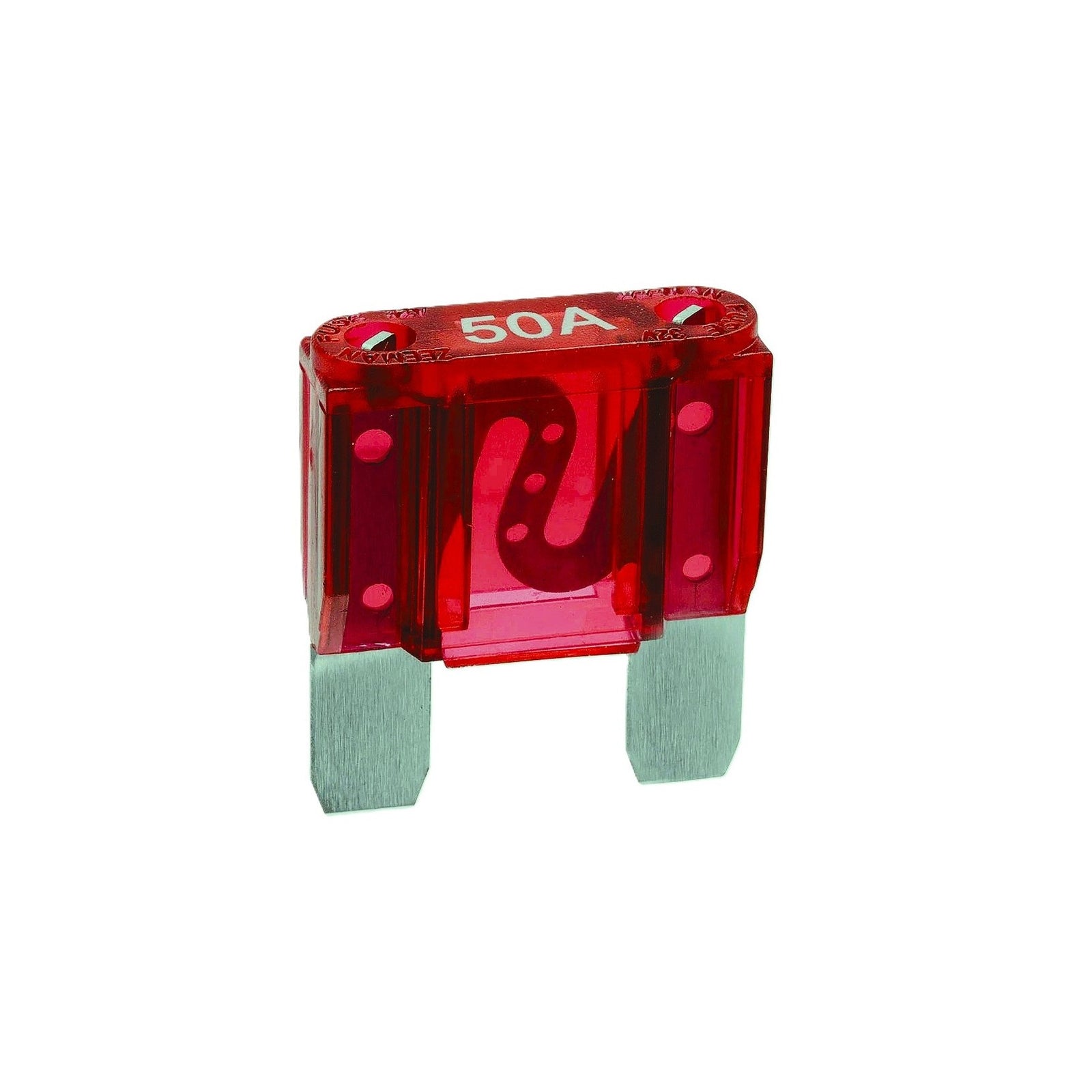

Carry the parts that can stop the system but are simple to replace in the field. Useful spares often include the correct fuse ratings used in the installation, one or two compatible high-current connectors, terminal hardware, heat-shrink, small cable ties and spare low-current blade fuses. For systems using proprietary or less common battery connectors, carrying a pre-terminated spare lead can save considerable time. A multimeter is also valuable for determining whether a problem is the battery, charger, fuse or wiring rather than replacing parts blindly. Avoid carrying random oversized fuses as substitutes; increasing fuse capacity can leave the cable unprotected. Before remote trips, inspect battery mounts, cable lugs and connector contacts and make a note of the fuse sizes and charger model used in the system.
