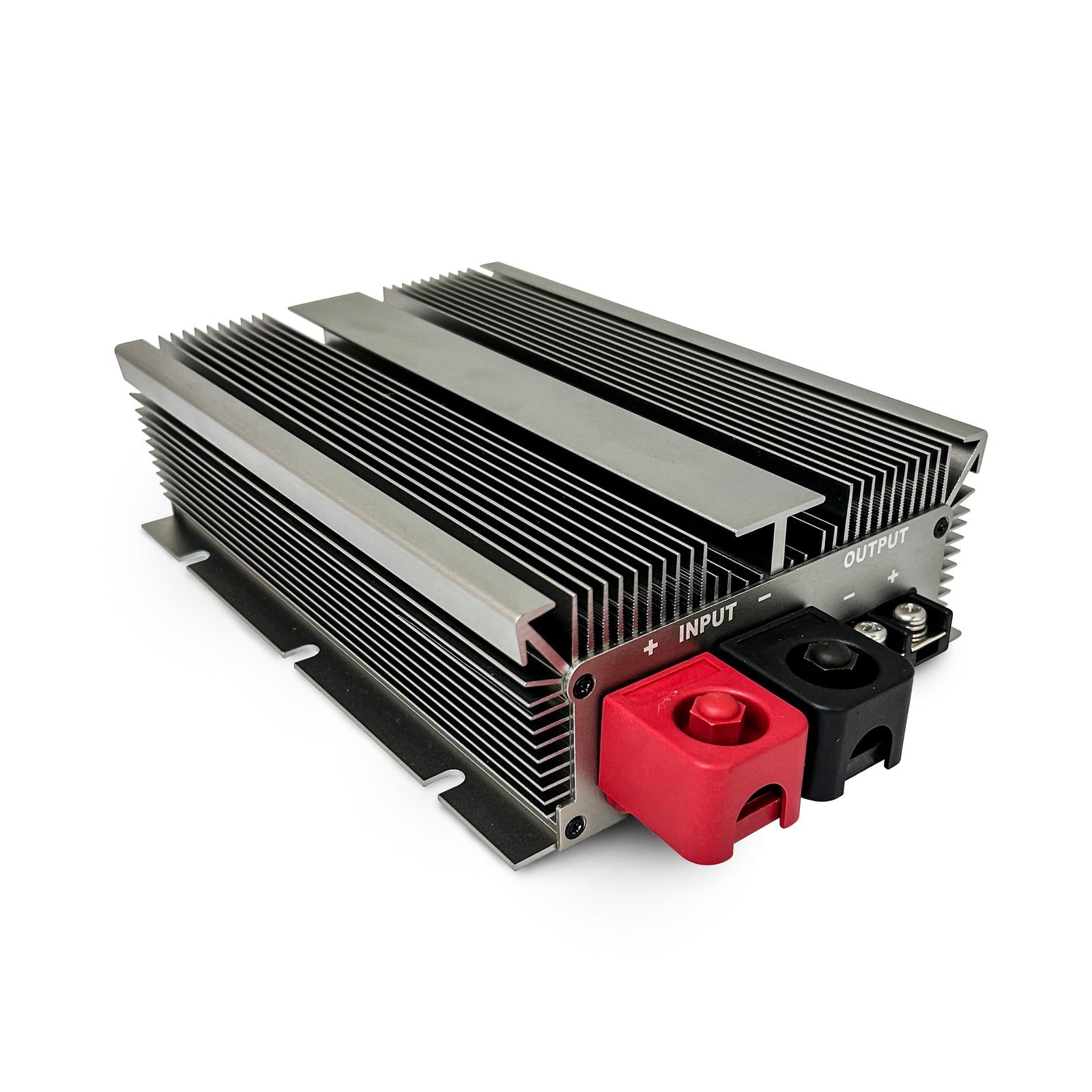

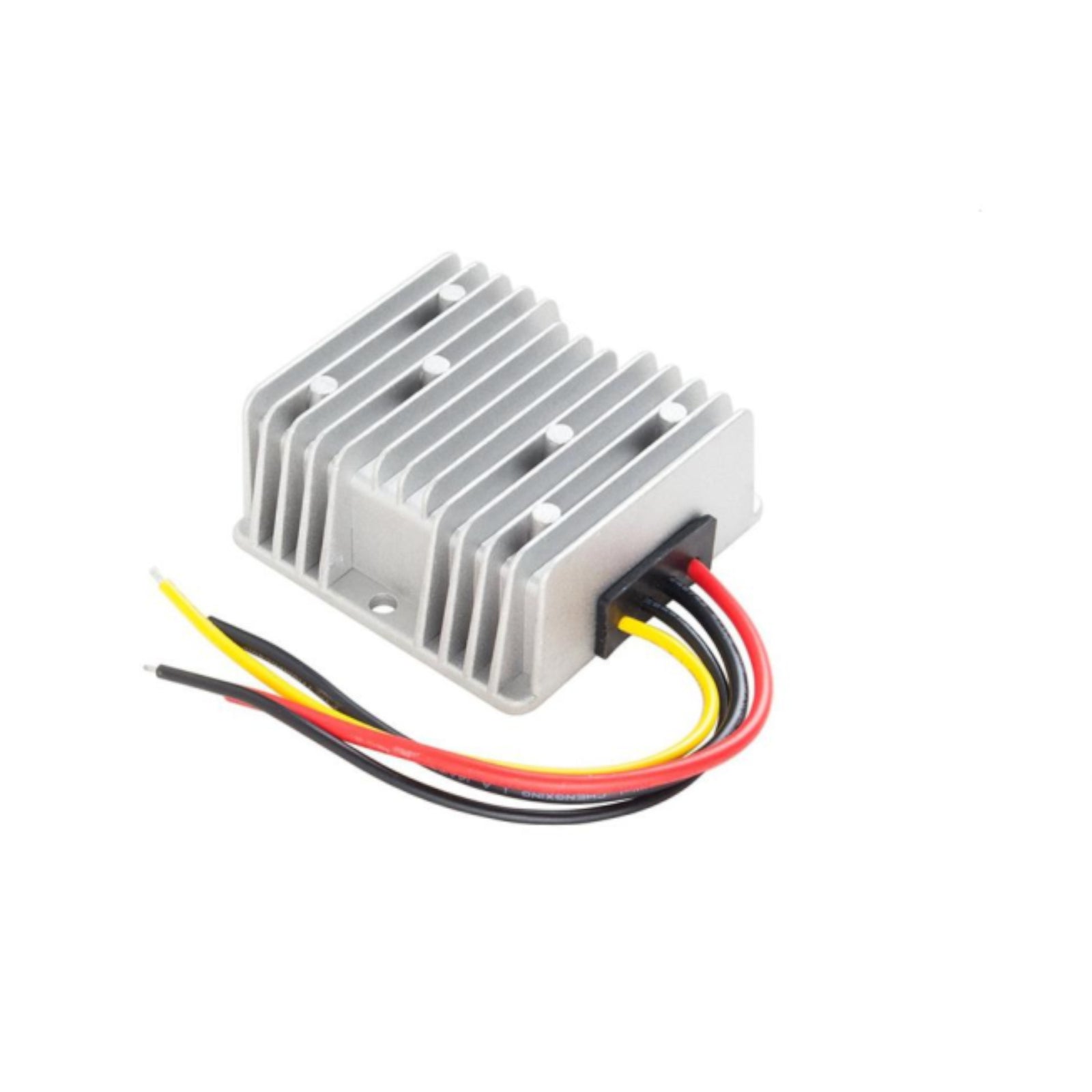

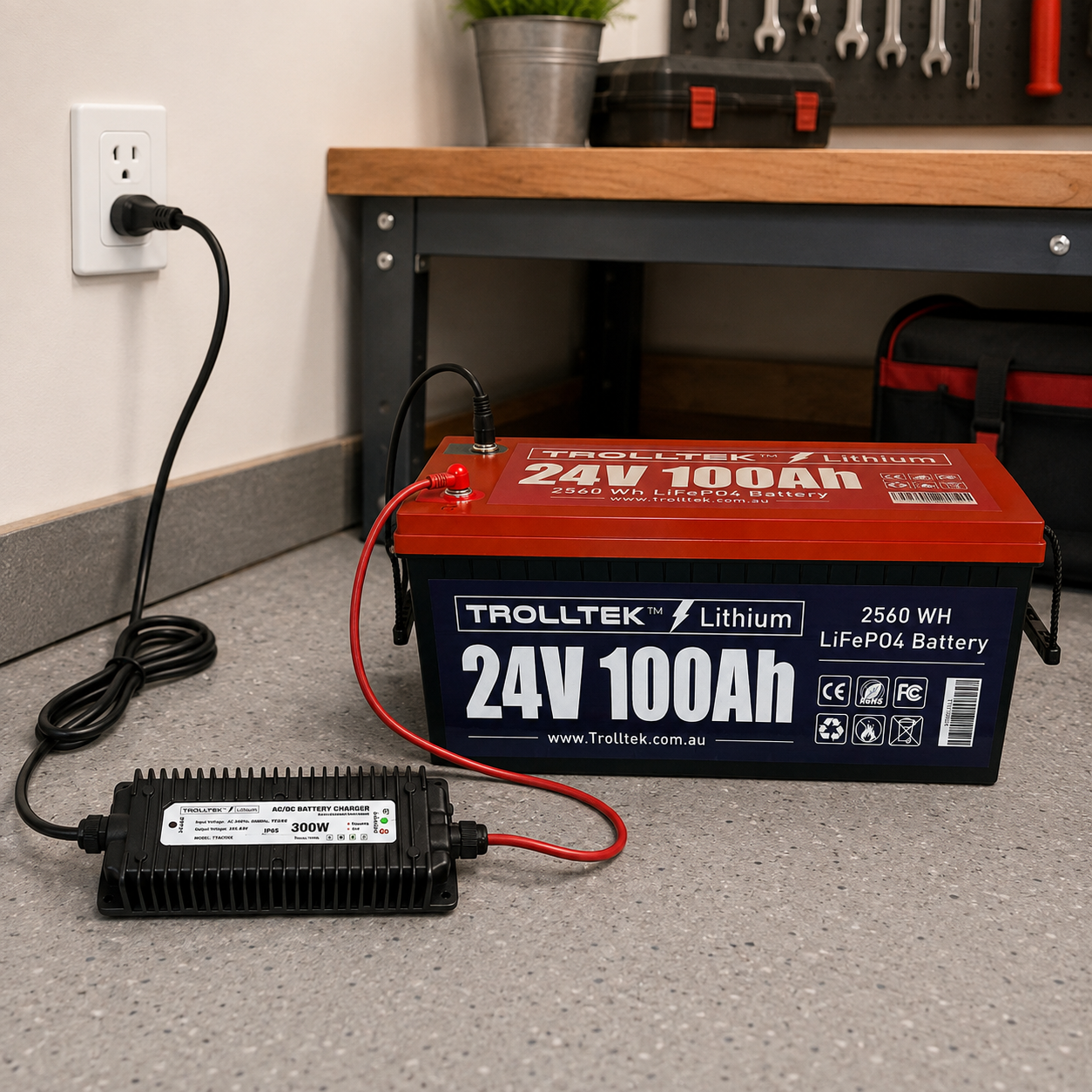

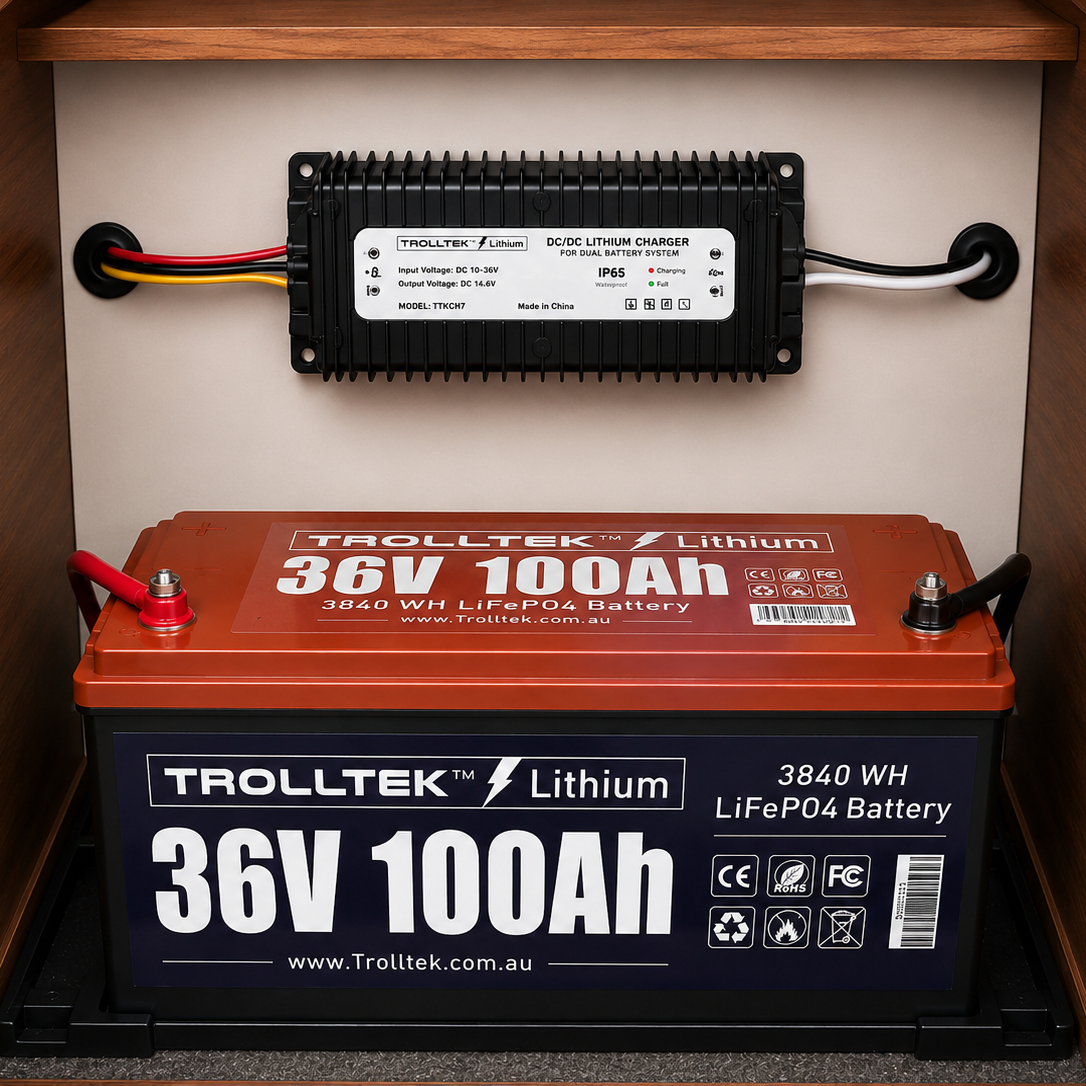

They perform different jobs. An AC battery charger converts 240V mains power into the controlled DC charging voltage required by the battery. A DC/DC battery charger takes power from another DC source—commonly a vehicle or boat starting system—and applies a regulated lithium charging profile to the auxiliary battery. A DC voltage converter is primarily a power-supply device: it changes one DC voltage to another stable DC voltage for equipment and is not automatically a battery charger. Choosing between them depends on whether you are replenishing a battery or simply powering a load. For installations with several charging sources, each device must be compatible with the battery voltage, chemistry, current limits and the upstream electrical system.

First check the battery's maximum permitted charge current, then select a charger that stays comfortably within that limit. Higher charge current can reduce recharge time, but only if the battery, cabling, fuses, connectors and power source are all capable of carrying it. In a DC/DC installation, the vehicle alternator or outboard charging system is particularly important because the charger cannot create energy—it draws its input power from the starting system. A large charger on a small alternator can cause low voltage or starting-battery discharge, especially at idle. For AC chargers, also consider how quickly the battery actually needs to be recovered between uses. Oversizing purely for the fastest possible charge is not always the best system design.

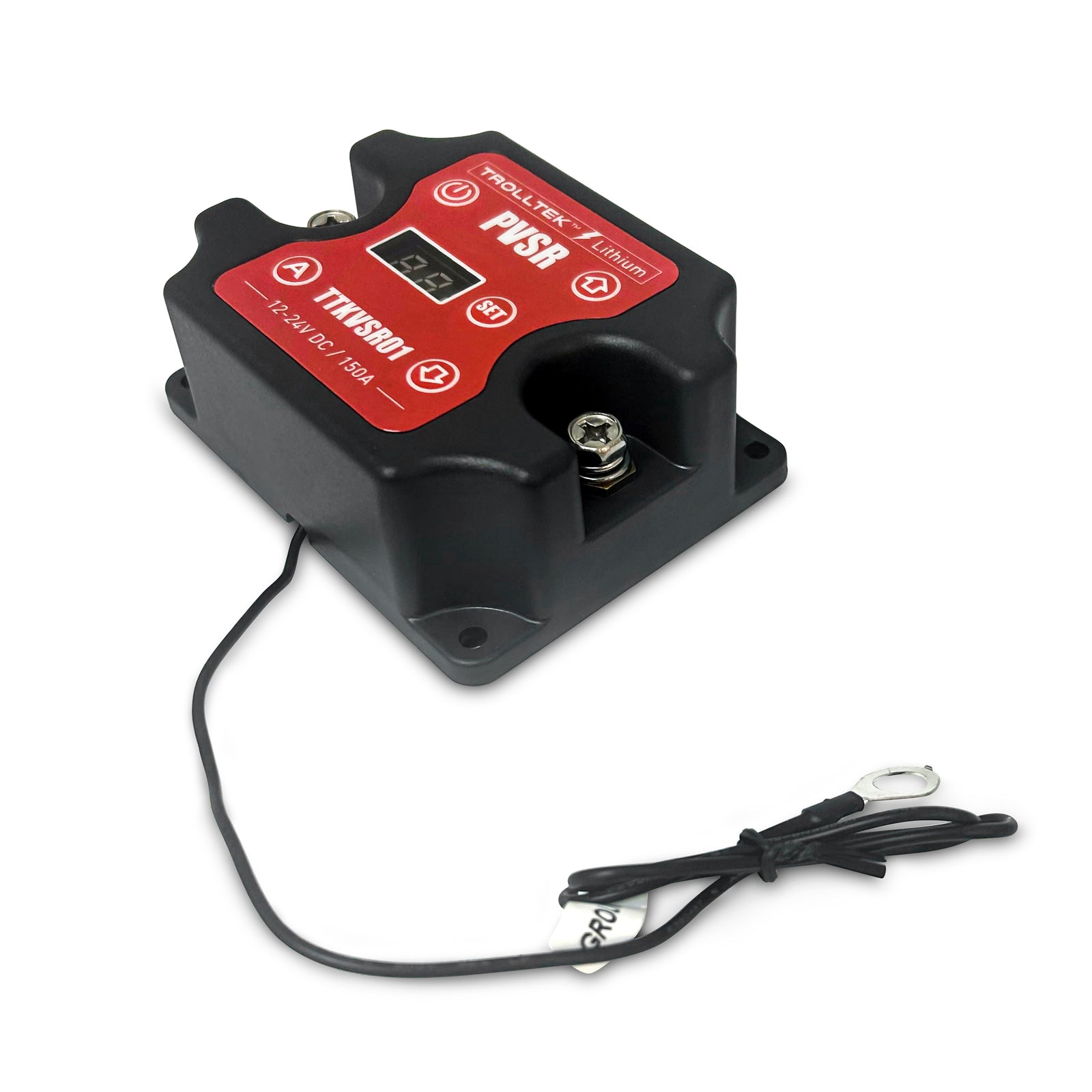

A VSR is useful when you want the DC/DC charger to operate only after the starting system reaches a suitable voltage. This helps prevent the charger from continuing to draw from a starting battery when the alternator or outboard is not producing enough power. Trolltek's programmable VSR can be configured with activation and cut-out conditions to suit the installation, which is particularly useful where available alternator output changes with engine speed. Some installations instead use an ignition or engine-run signal to trigger the charger. The best arrangement depends on the charging source and the DC/DC model. A VSR does not replace correct cable sizing or fusing; it is one part of protecting and automating the overall charging system.

Potentially, provided the electrical requirements match. Compare the charger's output voltage and charging profile with the battery manufacturer's specified charge voltage, maximum charge current and any special BMS requirements. Matching the nominal voltage alone is not enough—for example, two batteries both labelled 12V may still have different recommended charging parameters. Trolltek chargers are supplied configured for Trolltek lithium batteries, which simplifies a matched Trolltek installation, but compatibility with another battery should be confirmed from both sets of specifications. Also check connector type, cable size and protection. If the battery manufacturer requires communication between the battery and charger, or specifies a proprietary charging method, a conventional fixed-profile charger may not be appropriate.

Low-voltage DC systems can carry very high current, so cable resistance quickly turns into voltage drop and heat. A cable that is adequate for a short 10A circuit may be completely unsuitable for a 40A, 60A or 100A charger over a longer run. Excessive voltage drop can reduce charge performance, cause a charger to cycle or shut down and, in severe cases, overheat terminals or cables. Cable size must be based on current, one-way cable length, allowable voltage drop, installation temperature and the relevant wiring requirements. Protection devices should be located and rated to protect the cable, not simply chosen to match the charger's label. Good-quality crimped terminals and secure connections are equally important because a single loose high-resistance connection can create more heat than the cable itself.
