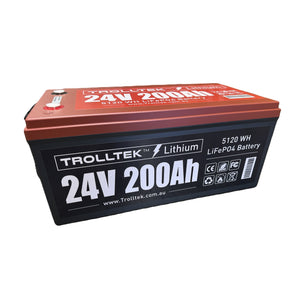

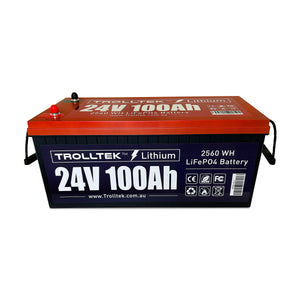

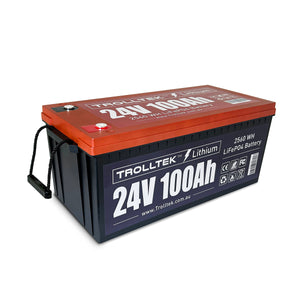

Trolltek™ 24V LiFePO4 Lithium Battery – 100Ah & 200Ah with Bluetooth

Trolltek™ 24V Lithium Batteries – Built for Tough Conditions

Trolltek™ 24V LiFePO4 batteries deliver dependable, lightweight lithium power for trolling motors, marine systems, off-grid setups and high-capacity auxiliary power applications.

Available in 100Ah and 200Ah capacities, each battery combines premium LiFePO4 cells, a heavy-duty Bluetooth Battery Management System (BMS), rugged internal construction and a fully sealed IP68 enclosure for reliable performance in demanding environments.

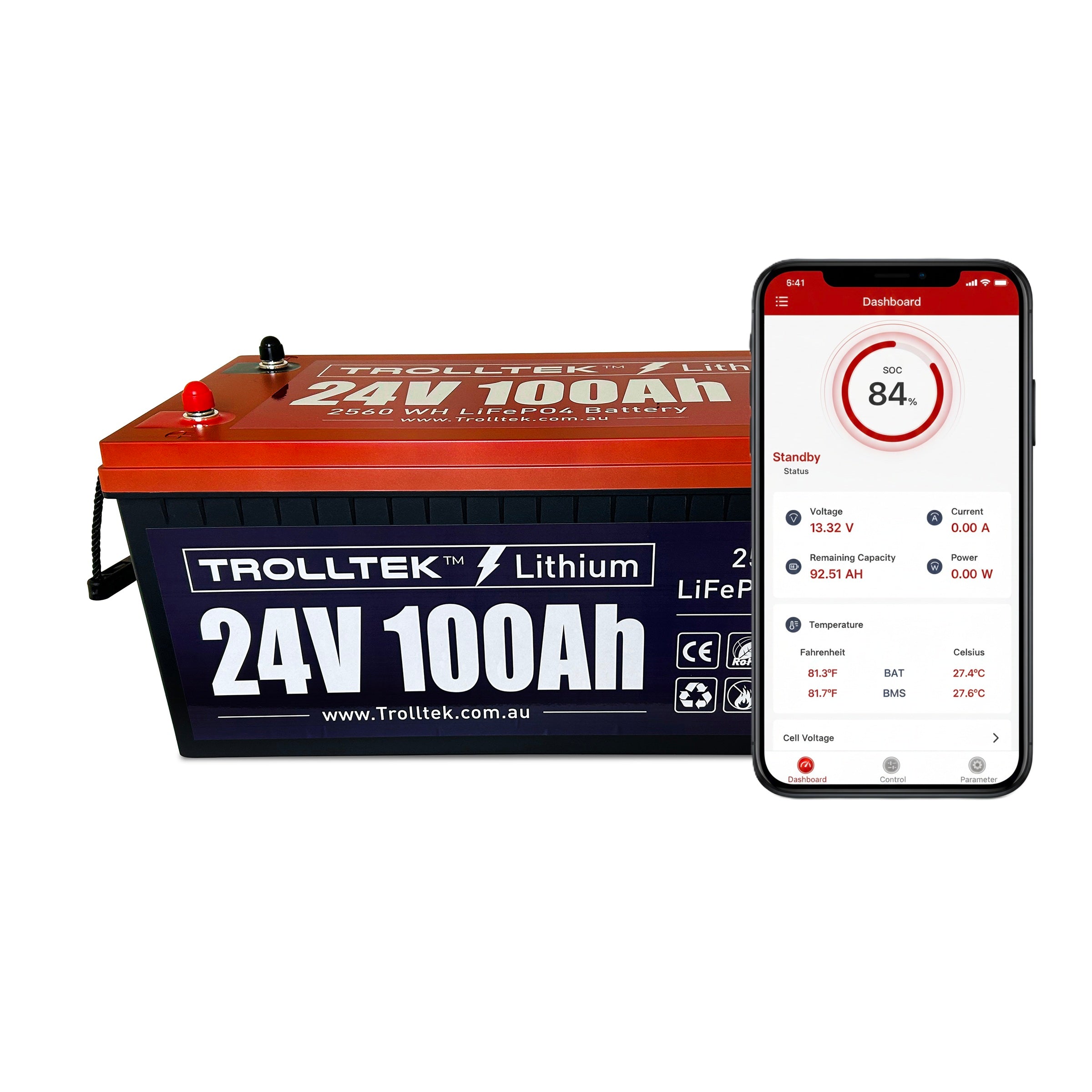

Bluetooth Monitoring – Standard

Check your battery directly from your smartphone using the Trolltek™ app. Bluetooth monitoring provides convenient access to state of charge, voltage, current and battery performance data without needing an additional battery monitor.

The Trolltek™ app is available for compatible iPhone and Android devices with no advertising or subscription fees.

IP68 Fully Sealed Construction

Designed for harsh outdoor and marine environments, the heavy-duty enclosure is fully sealed and rated to IP68 for protection against dust and water ingress.

An integrated waterproof pressure-equalisation vent helps safely manage internal pressure while maintaining protection against moisture, dust and external contaminants.

Advanced Battery Management System (BMS)

The integrated heavy-duty BMS continuously manages battery operation and provides important protection functions including:

• Low voltage protection
• High voltage protection
• Over-current and short-circuit protection
• High-temperature protection
• Cell balancing

Ideal for 24V Trolling Motors

Trolltek™ 24V lithium batteries are a popular choice for 24V trolling motor systems, including compatible Minn Kota and MotorGuide models.

A single 24V battery can provide a cleaner, lighter and more compact alternative to running multiple 12V batteries in series, depending on the requirements of your setup.

High Discharge Capability

With up to 100A continuous discharge and 280A pulse current, Trolltek™ 24V batteries are suited to demanding electrical systems requiring strong and reliable power delivery.

Fast, Efficient Charging

The BMS supports up to 100A continuous charging, allowing compatible lithium battery chargers and DC charging systems to efficiently replenish the battery.

Always use a charger with a suitable 24V LiFePO4 charging profile and follow the recommended charging specifications for your system.

Premium LiFePO4 Cells

Trolltek™ batteries use new UL-certified LiFePO4 pouch cells selected for long service life, stable performance and excellent usable capacity.

Heavy-duty internal supports secure the cells and wiring to improve stability and durability in demanding mobile and marine installations.

Wide Operating Temperature Range

Designed to operate across a wide range of conditions, with an operating temperature range of -20°C to 60°C.

Charging is not recommended below 0°C. Maximum recommended storage temperature is 45°C. These batteries are not recommended for under-bonnet installation.

Safety & Certifications

• Battery listed as UN38 certified
• Cells are UL1642 certified and tested to IEC62133
• Designed to meet applicable transport requirements for lithium batteries

Please refer to Trolltek™ documentation for complete certification and transport information.

5 Year Battery Warranty

Every Trolltek™ lithium battery is backed by a 5-year battery warranty, giving you confidence in your power system for years to come.

Ideal for trolling motors, marine systems, off-grid applications, caravans, RVs and high-capacity auxiliary power systems where dependable 24V lithium power is required.

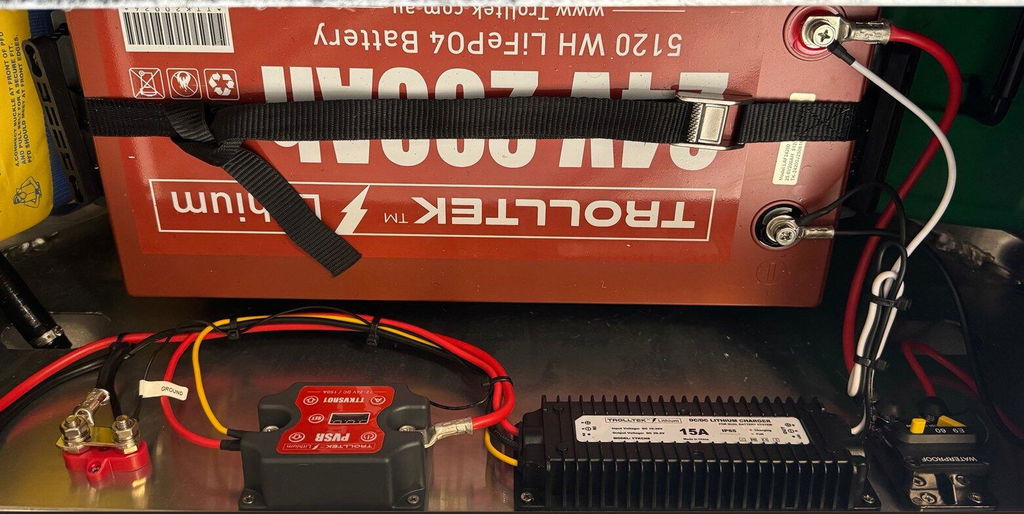

Installation & Setup Resources: Trolling Motor Setup

SPECIFICATIONS
