TTK10012
Trolltek™ batteries are built strong for the harsh marine environment with heavy duty internal construction and fully sealed outer casing.
Trolltek™ batteries are only built with the highest performance, new, UL certified cells, meaning the battery performs and lasts even with huge cycle counts. Users can expect up to 80% capacity at 3,000 cycles in recommended conditions.
The battery half life is reached at over 6,000 cycles meaning with daily cycling the battery will still be performing after more than 16yrs.
Internal cells and wiring benefit from heavy duty supports.

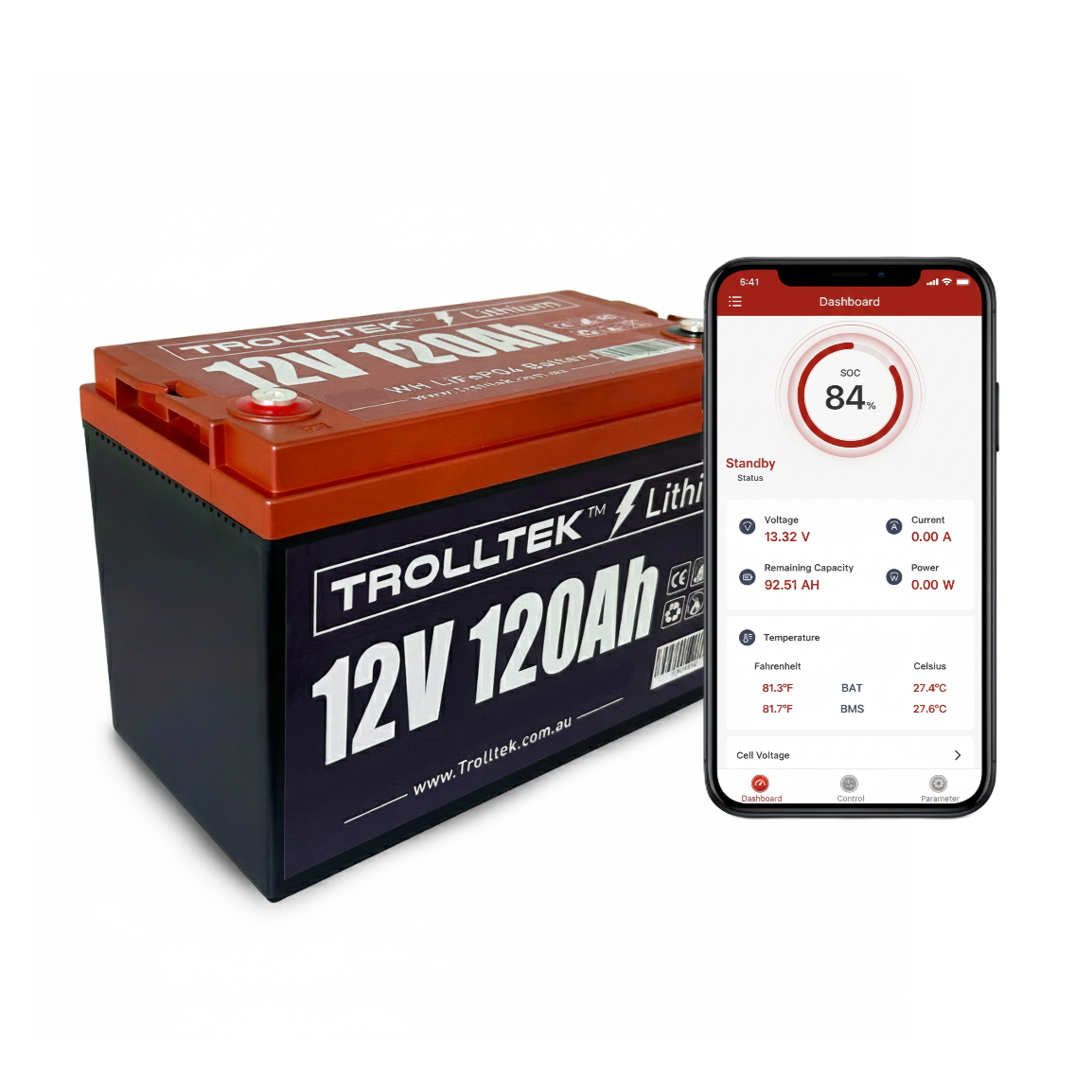

Using a heavy duty Battery Management System ensures Trolltek™ batteries perform in the most demanding applications. Bluetooth connection is standard on all Trolltek™ batteries meaning users always know their state of charge and usage currents.
An active BMS protection circuit manages cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life. All batteries are UN 38 certified.
Trolltek™ cells are UL1642 certified and have been tested per IEC62133 standards. Trolltek™ batteries meet all US & International regulations for air, ground, train, & marine transport.
Suitable for continuous draw of 100A and peak loads up to 280A.
Modern outboards have larger alternators and can charge your batteries faster than ever before. Recharge your Trolltek™ at speed with maximum 100A continuous charging current via the BMS.
Suited to challenging environments, use from -20°C up to 60°C.
Do not charge at sub 0°C temperatures.
Trolltek™ offer a 5yr pro rata warranty on lithium batteries.
VOLTAGE |
12V 13.4-13.8V (after charging) |
CAPACITY |
100AH / 1280WH 200AH / 2560WH |
BMS |
Included with Bluetooth connection Trolltek app available for iPhone and Android monitoring (free download, no advertising or subscription fees) Low voltage protection High voltage protection Over temperature protection |
COMPATABILITY |
Popular choice for use with 12V Minn Kota, MotorGuide, Watersnake trolling motors |
MAX. CONTINUOUS CHARGING | 100A |
MAX. CONTINUOUS DISCHARGE | 100A |
MAX. PULSE CURRENT | 280A |
MAX. STORAGE TEMP. | 45°C - Not recommended for under bonnet installations |
CELLS |
New, UL Certified, Pouch cells Capable of 6,500+ cycles based on 50% DOD (Depth of discharge) |
PARALLEL/SERIES CONNECTIONS |
Parallel - no limit Series - Max. 4 for a 48V system |
ENCLOSURE | Fully sealed, waterproof, submersion tested |
DIMENSIONS & WEIGHT |
100AH / 329x172x214mm / 11.2 kg 200AH / 522x240x218mm / 22 kg |
WARRANTY | 5yrs pro rata |
