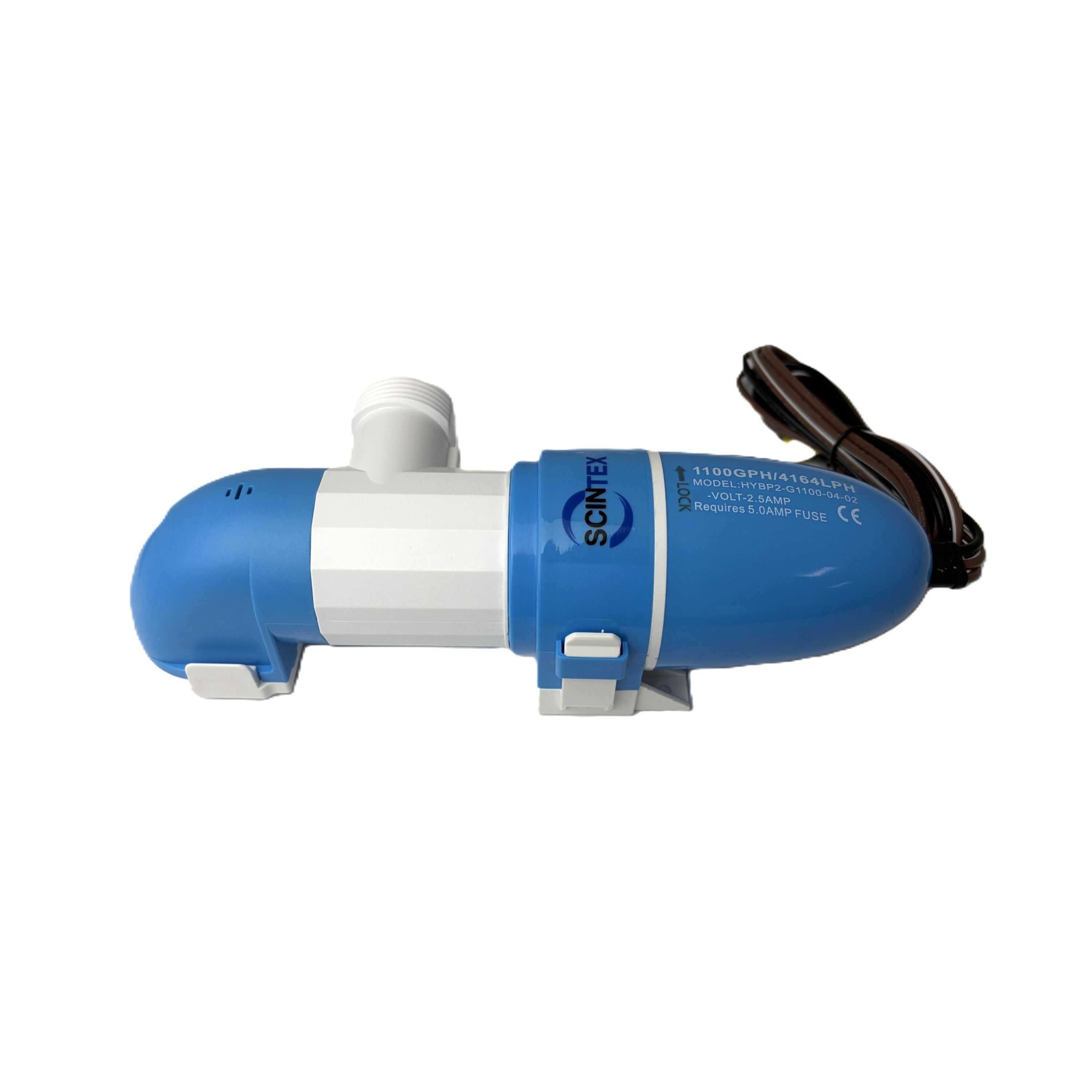

    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing is shown on a white background, featuring a blue and white design with an attached power cord.

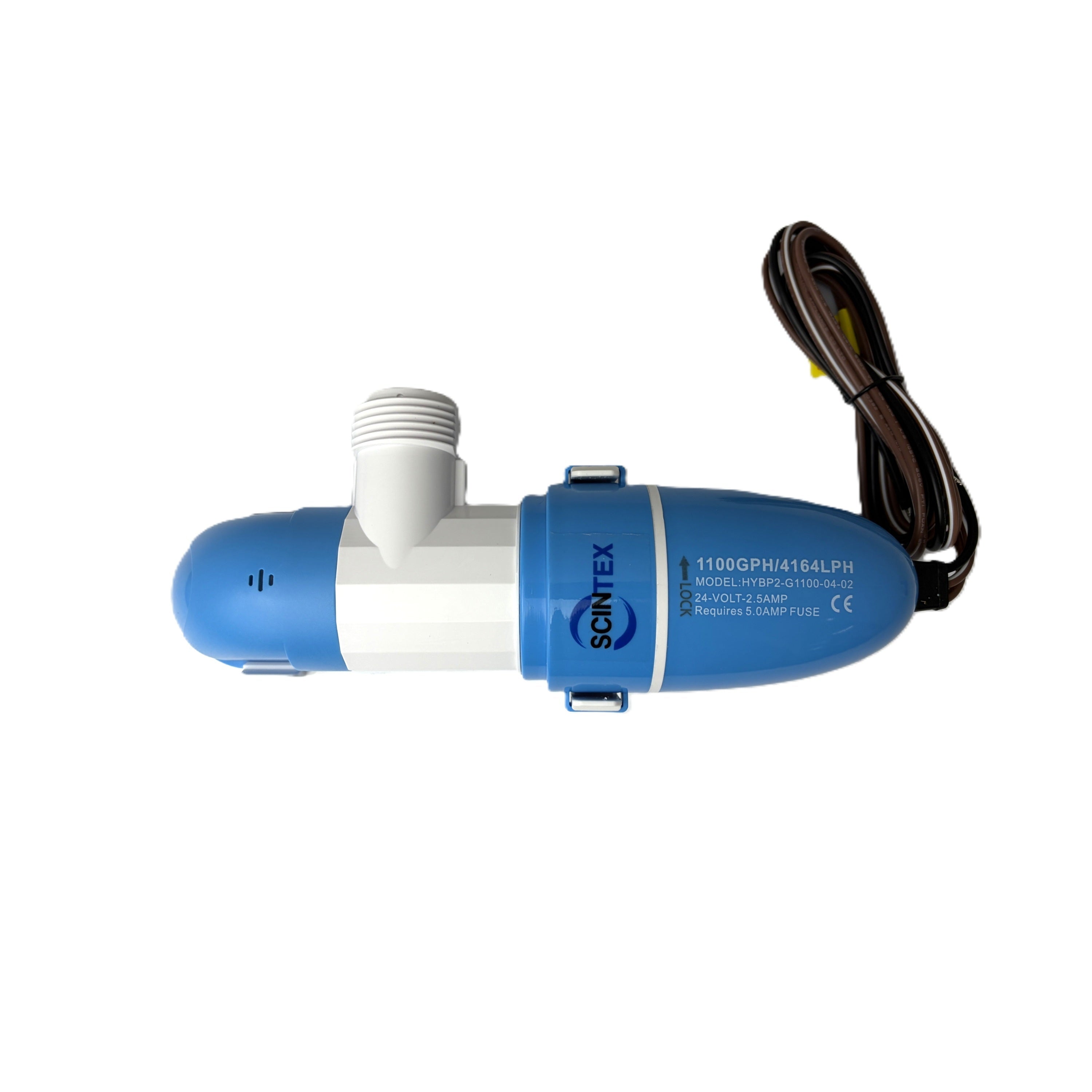

    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, blue and white with a cylindrical body, grated intake, upward-facing pipe outlet, power cord, and product label on the side.

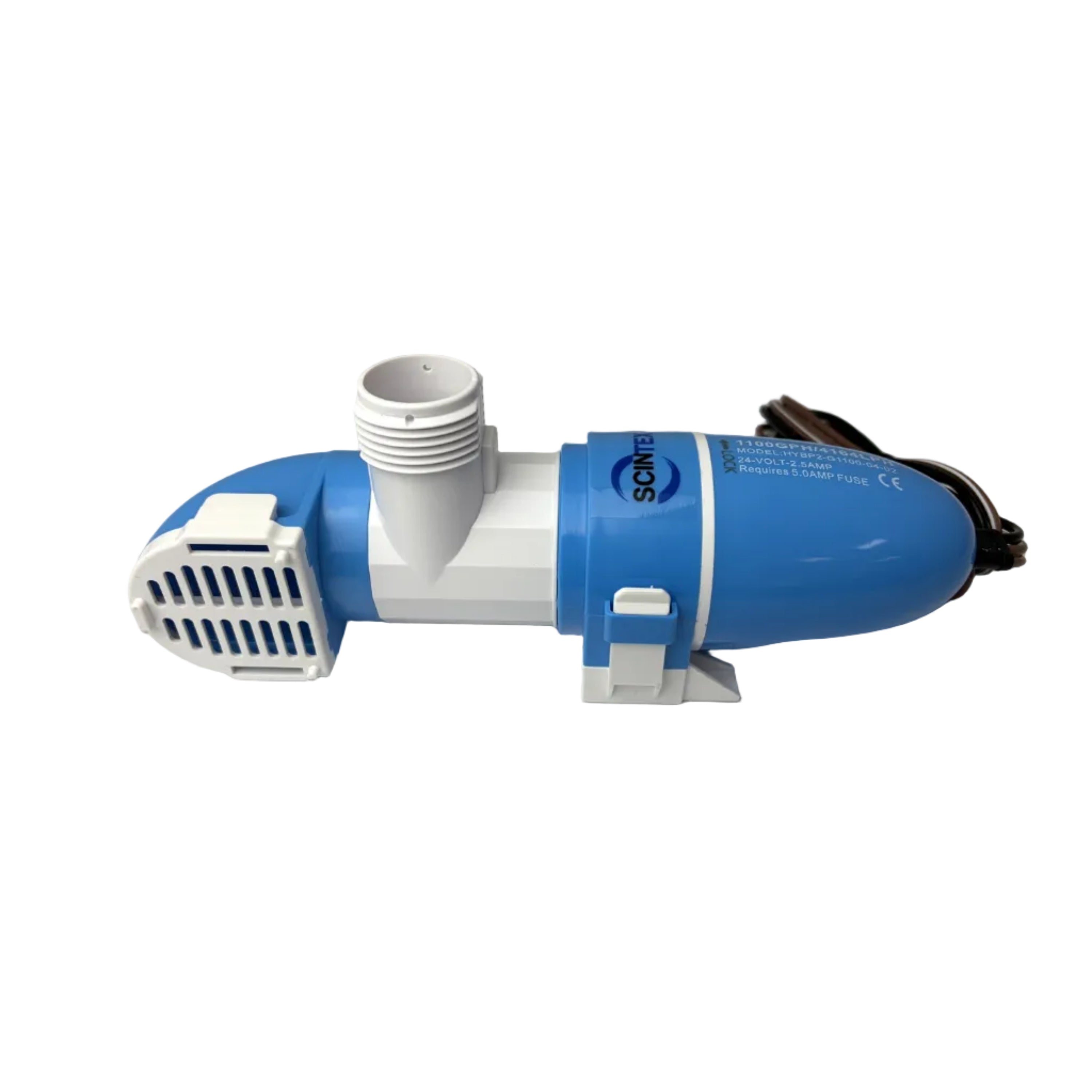

    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, blue and white with a curved cylindrical design, sits on white plastic stands and a black cord at one end, set against a plain white background.

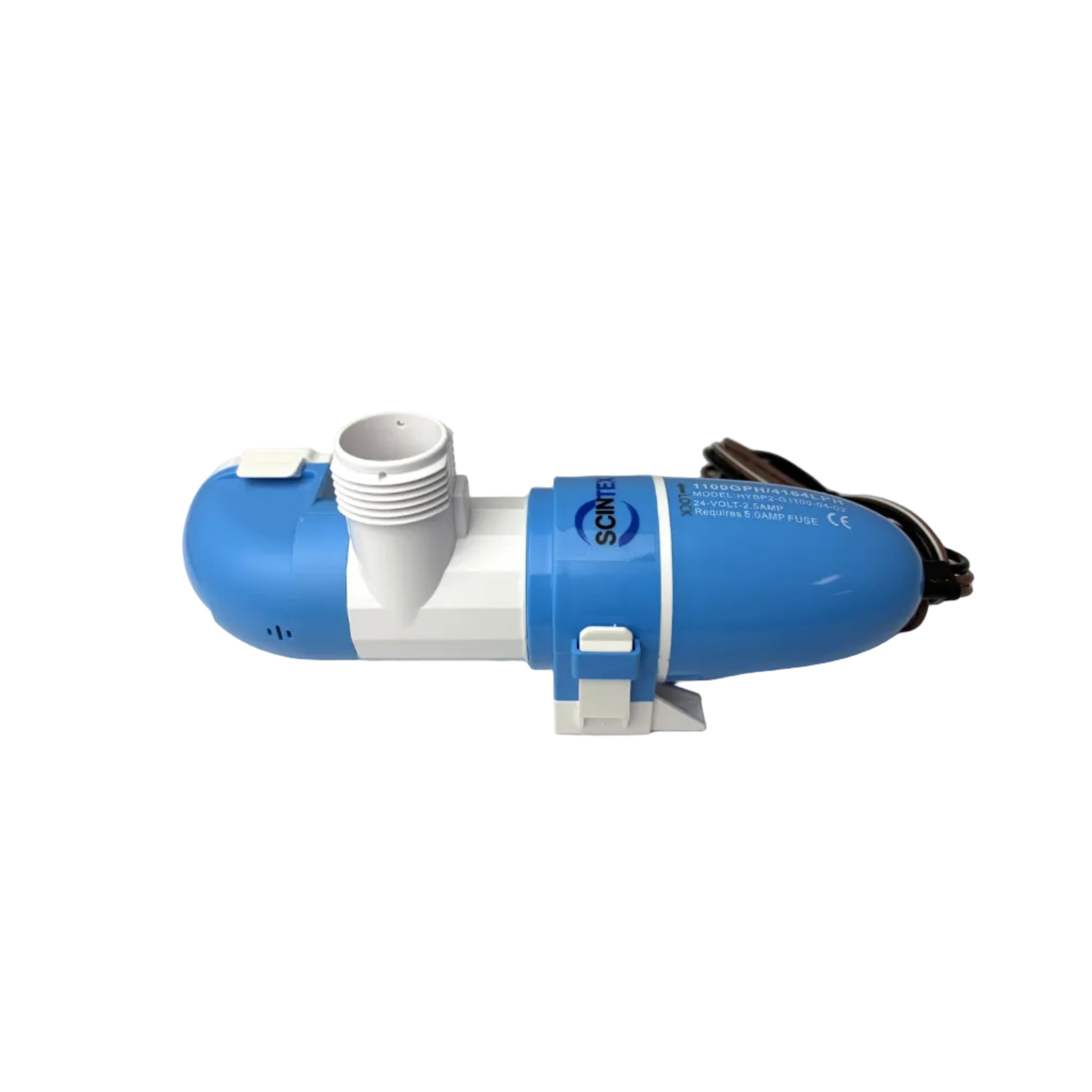

    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing in blue and white, with an attached electrical cord and threaded pipe outlet, is displayed on a white background.

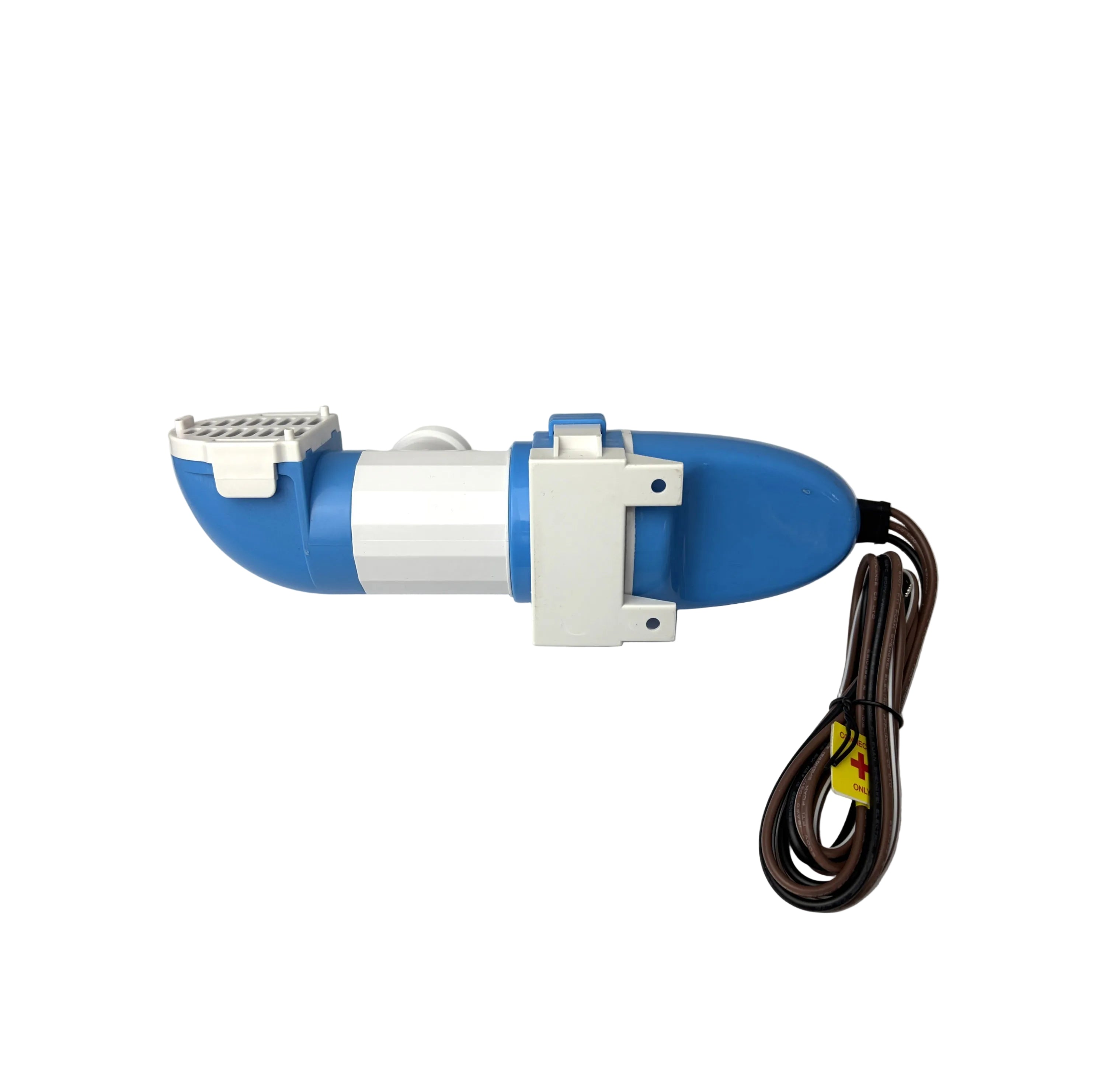

    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing features a blue and white handheld design, vented grill, mounting bracket, and a long brown power cord.

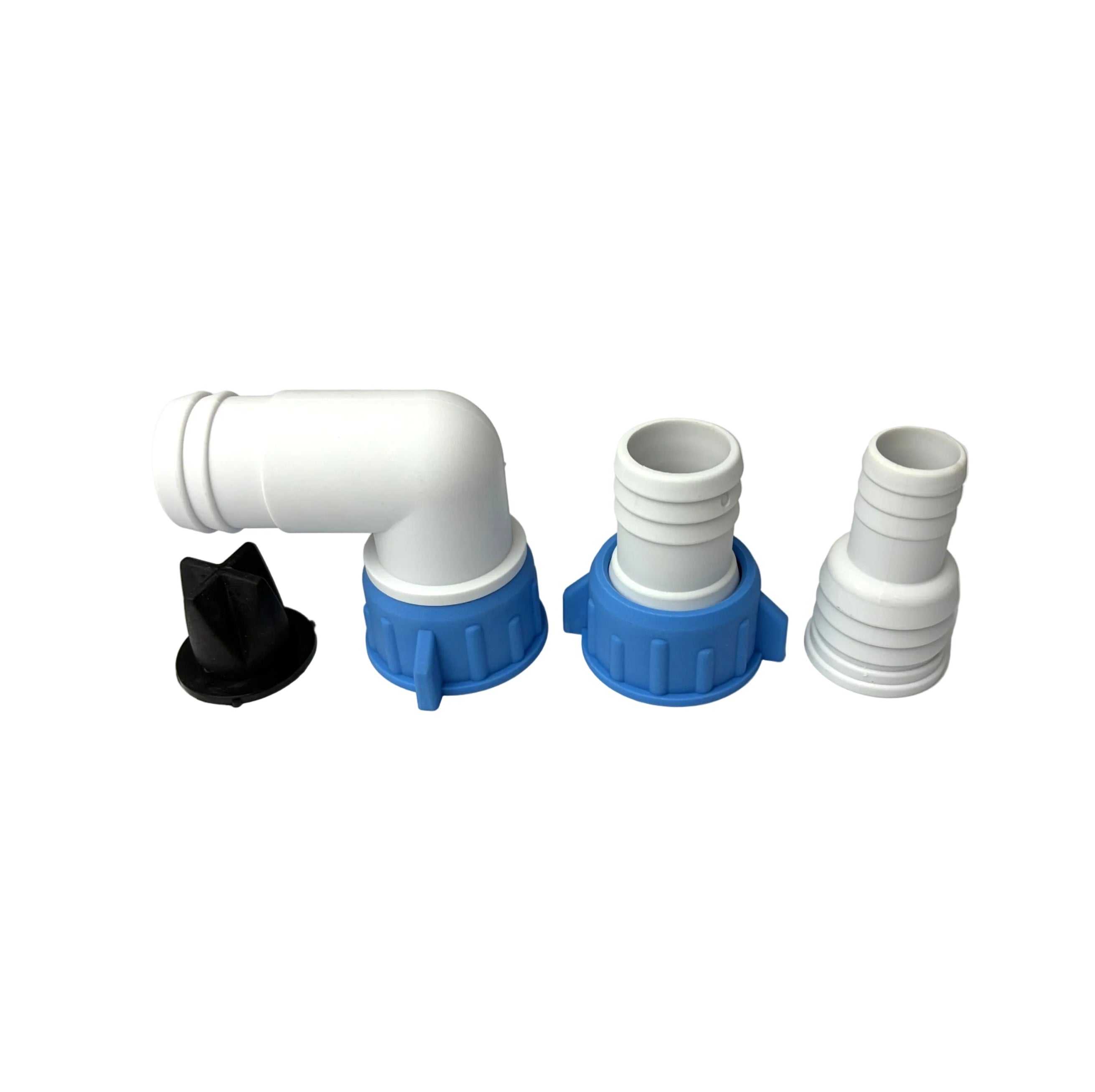

    A set of white plastic hose fittings with blue threaded collars and a black cap, including an elbow and two straight connectors, for use with the Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, shown on a white background.

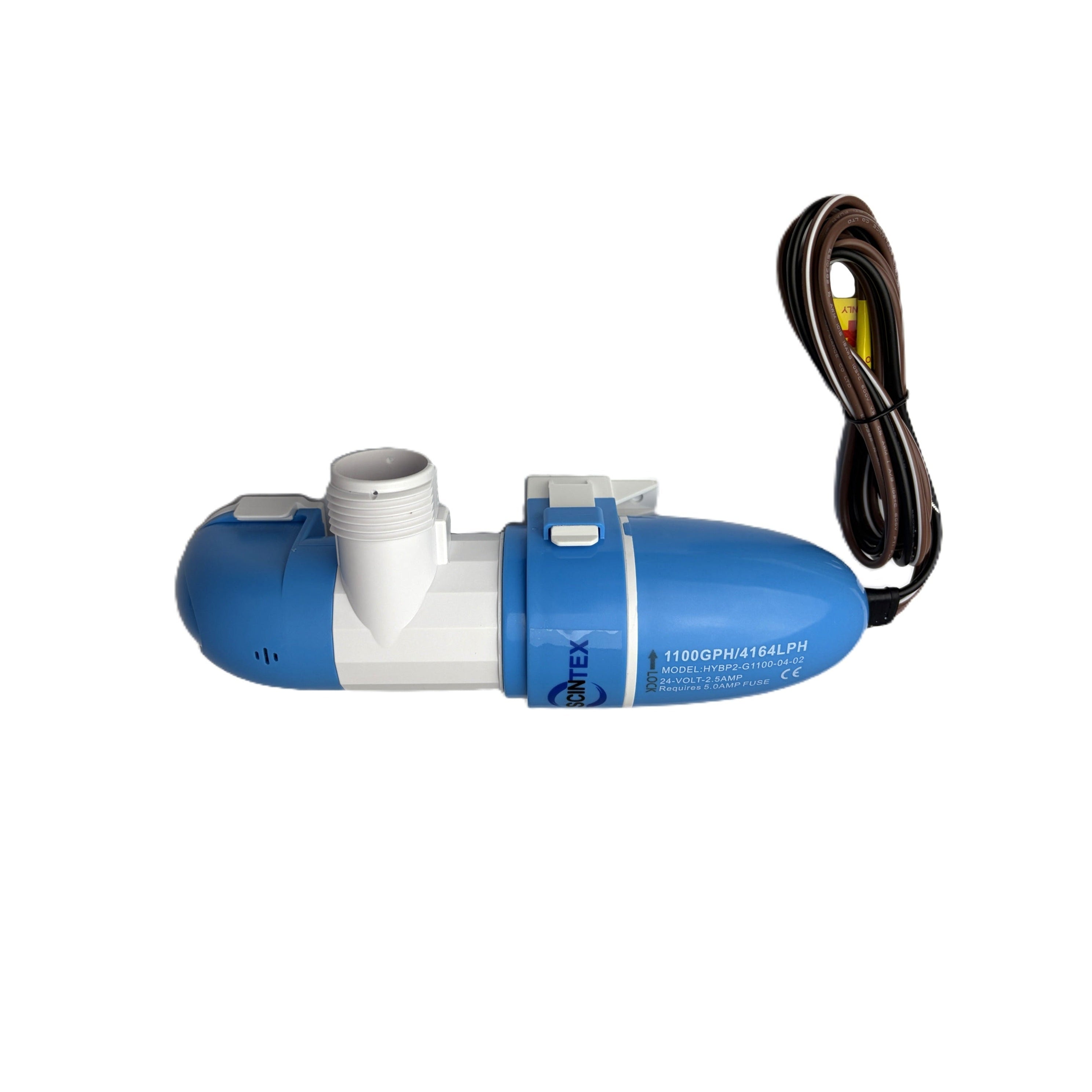

    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, blue and white with a cylindrical design, top white threaded inlet, side clip, and electrical cord is shown on a plain white background.

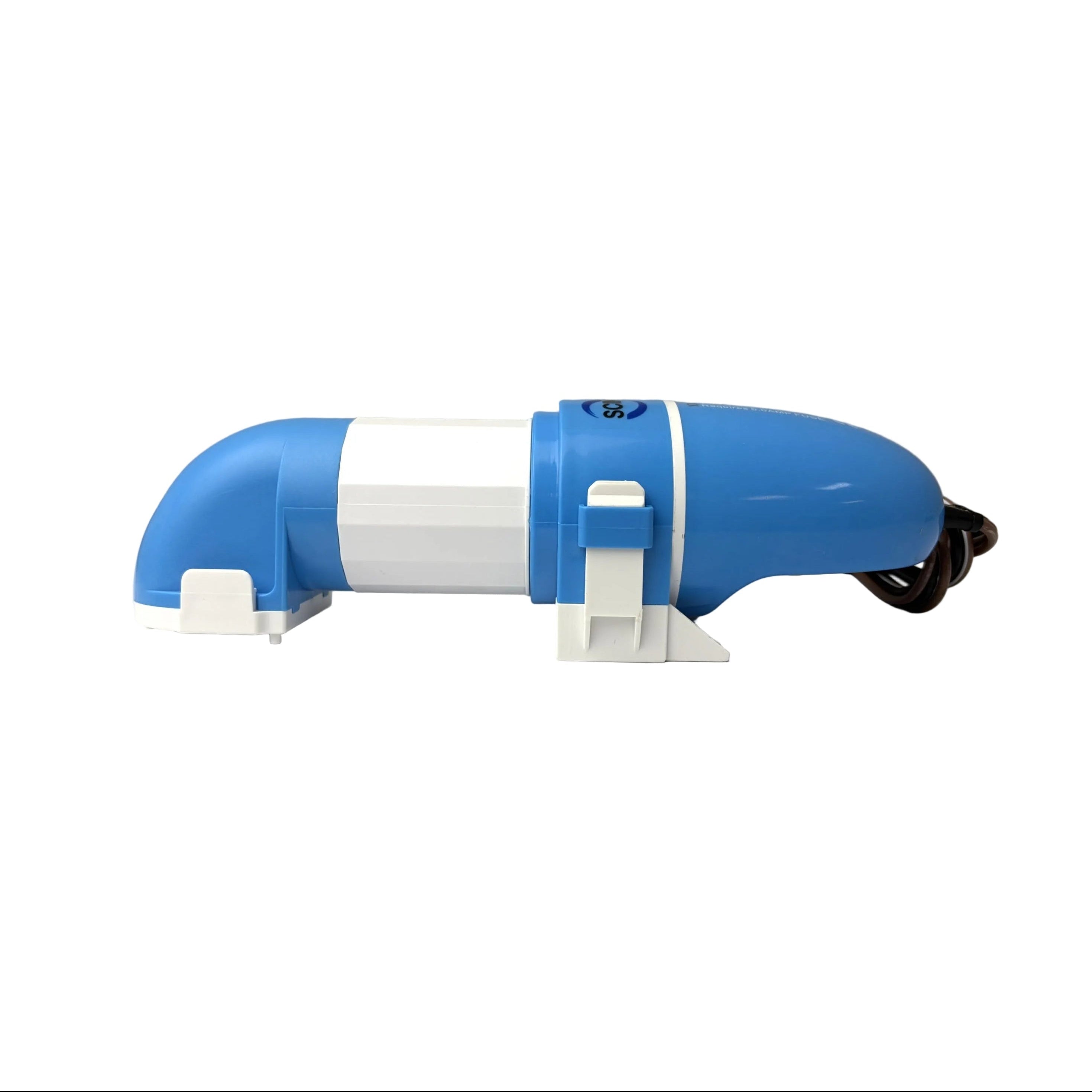

    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing is a blue and white, compact, cylindrical device with attached wires and a label, displayed horizontally against a white background.
    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, featuring blue and white housing, a brown power cord, and visible pipe connection, isolated on a white background.
    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing is shown on a white background, featuring a blue and white design with an attached power cord.
    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, blue and white with a cylindrical body, grated intake, upward-facing pipe outlet, power cord, and product label on the side.

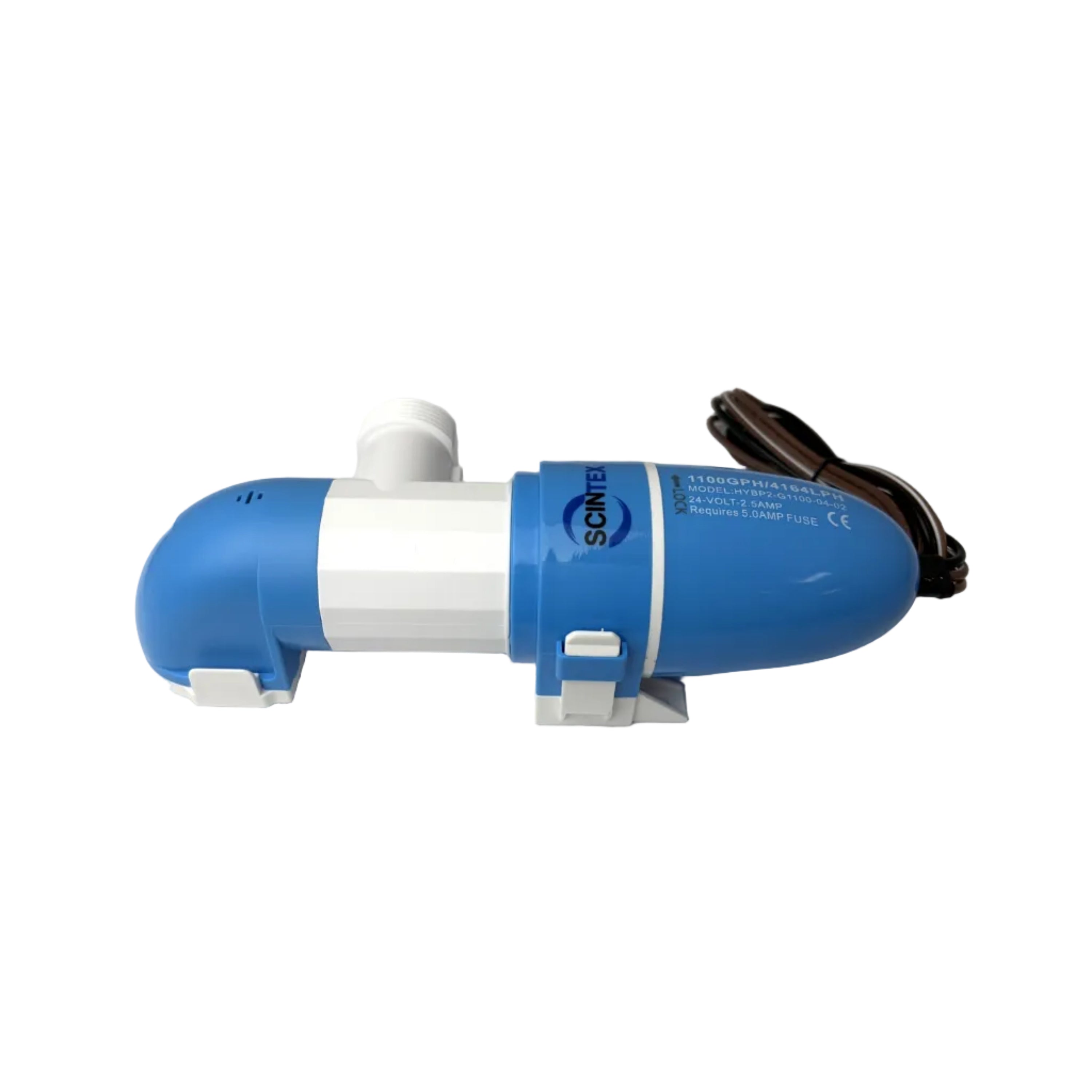

    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, blue and white with a curved cylindrical design, sits on white plastic stands and a black cord at one end, set against a plain white background.
    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing in blue and white, with an attached electrical cord and threaded pipe outlet, is displayed on a white background.
    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing features a blue and white handheld design, vented grill, mounting bracket, and a long brown power cord.
    A set of white plastic hose fittings with blue threaded collars and a black cap, including an elbow and two straight connectors, for use with the Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, shown on a white background.
    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, blue and white with a cylindrical design, top white threaded inlet, side clip, and electrical cord is shown on a plain white background.
    The Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing is a blue and white, compact, cylindrical device with attached wires and a label, displayed horizontally against a white background.
    A Scintex Horizontal Bilge Pump 70 LPM Automatic Level Sensing, featuring blue and white housing, a brown power cord, and visible pipe connection, isolated on a white background.

    Horizontal Bilge Pump 70 LPM Automatic Level Sensing

    $79.00

    SBP12V1100H

    FREE SHIPPING ON ORDERS OVER $99

    Voltage
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

    DESCRIPTION

    Keep your vessel dry and protected with this high-performance Horizontal Automatic Bilge Pump. Designed for reliable operation in harsh marine environments, this compact pump features integrated automatic level sensing technology, eliminating the need for a separate float switch and simplifying installation.

    Ideal for boats, yachts, kayaks, and other marine applications, the pump automatically activates when water levels rise and switches off once the bilge is nearly dry. Its horizontal design allows installation in tight spaces, while corrosion-resistant construction ensures long-lasting performance in saltwater environments.

    Features

    • Available in 12V and 24V models
    • Integrated Automatic Level Sensing
    • High-flow 70LPM (1,100 GPH) capacity
    • Compact horizontal design for tight installations
    • Corrosion-resistant marine-grade construction
    • Easy rotate & removal of pump for cleaning and maintenance
    • Meets Australian Marine and CE/ISO standards
    • Can be wired for automatic or manual operation*

    Automatic Level Sensing

    The built-in electronic sensor automatically activates the pump when water reaches approximately 6cm (2.36") and switches off when levels drop to approximately 1cm (0.4"), helping keep the bilge almost completely dry.

    Unlike traditional systems that require an external float switch, the integrated sensing system reduces installation complexity and eliminates the risk of float switches becoming obstructed or stuck.

    Smart Automatic Operation

    The integrated electronic sensing system checks for water every 2.5 minutes, automatically activating the pump when required. Once operating, the pump monitors load conditions and will stop after 15 seconds if the current draw falls below 2.2A, indicating that water has been removed.

    Built for Marine Environments

    Constructed from durable, corrosion-resistant materials, this bilge pump is designed to withstand demanding marine conditions. The removable snap-off strainer provides quick access for cleaning debris, ensuring reliable operation and easy maintenance.

    Typical Applications

    • Fishing boat bilges
    • Sailing yachts
    • Power boats
    • Kayaks and small craft
    • Aquaponics systems
    • Onboard water transfer systems
    • General water movement and drainage applications

    Protect your investment with a dependable automatic bilge pump designed to keep unwanted water under control wherever your adventures take you.

    *Refer to the wiring diagram in the user manual for manual switch operation.

    SPECIFICATIONS

    Model SBP1100
    Voltage options 12V or 24V
    Current 12V / 24V 4.3A / 2.5A
    Designed Flow(GPH) 70LPM (1,100GPH)
    Flow @ 1M Head(GPH) 66LPM (1,050GPH)
    Max. Discharge Head 4m
    Outlet Diameter 19mm (3/4')
    Accessories Straight - 3/4" (19mm) / 1-1/8" (29mm
    Straight - 1" (25mm) / 1-1/8" (29mm)
    Elbow - 1-1/8" (29mm)
    Wire Length 1m
    Dimensions

    230mm(L)

    66mm(W)

    70mm(H)
    Warranty 12 Months
