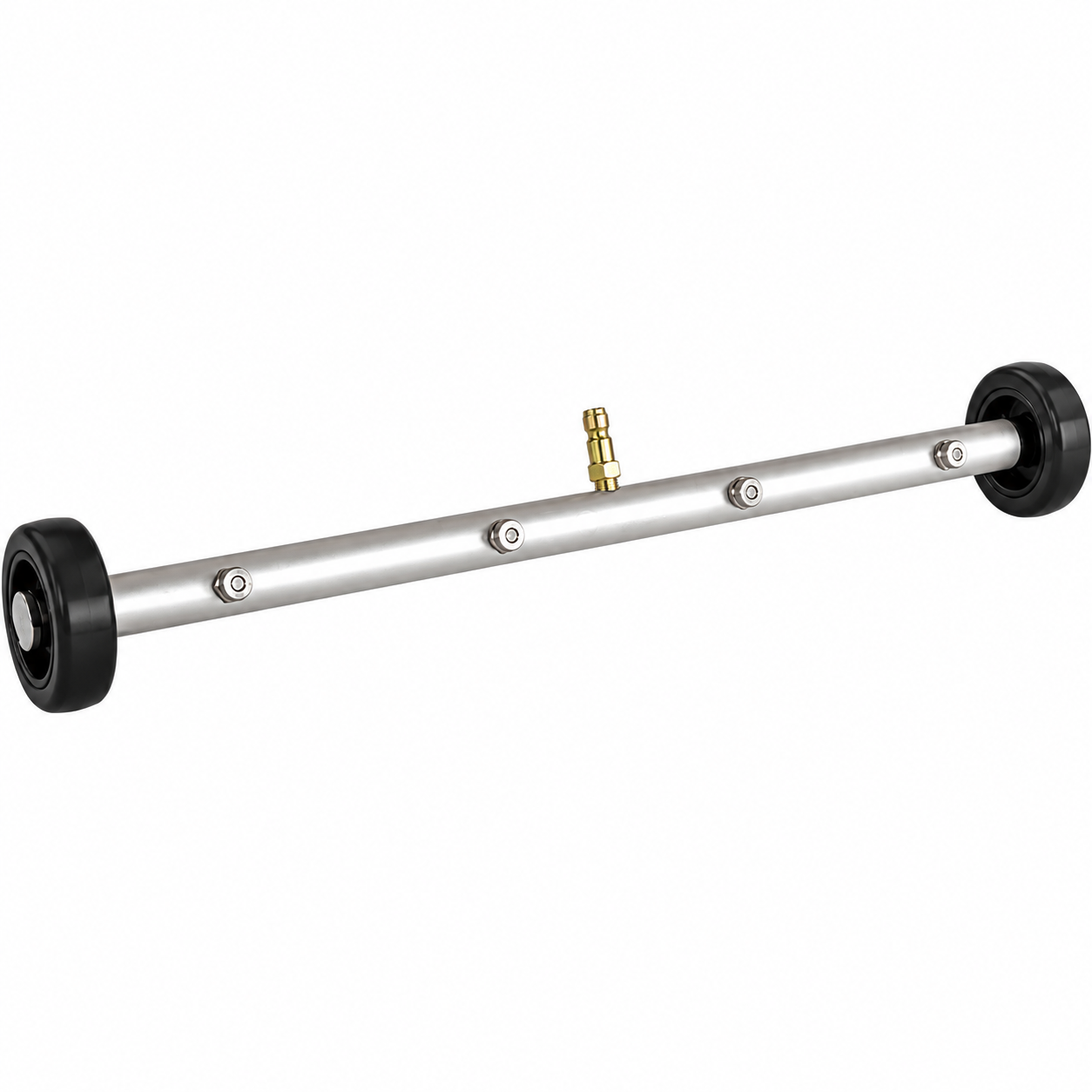

Underbody Cleaning Wand 500mm (20")

Underbody Cleaning Wand 500mm (20")

Clean underneath cars, 4WDs, trucks, trailers and machinery quickly and easily with the Paddock™ 500mm (20") Underbody Cleaning Wand. Designed to reach areas that are difficult to access with a conventional pressure washer lance, the wide cleaning head uses four high-pressure jets to blast away mud, dirt, salt, sand and road grime.

Featuring a 500mm (20") cleaning width, extended 914mm (36") reach and easy-rolling wheels, the underbody cleaner allows you to clean across the underside of vehicles while remaining in a comfortable standing position. Ideal for 4WD enthusiasts, workshops, farms, commercial fleets and anyone regularly operating vehicles in muddy, dusty, coastal or off-road environments.

• 500mm (20") wide underbody cleaning head
• Four high-pressure cleaning jets
• 914mm (36") extension wand for excellent reach
• Ideal for cars, 4WDs, trucks, trailers and machinery
• Helps remove mud, dirt, salt, sand and road grime
• Easy-rolling wheel design for smooth manoeuvring
• Clean underneath vehicles without crawling underneath
• Rated to a maximum 4,000 PSI / 275 bar
• Suitable for water temperatures up to 60°C
• 1/4" quick-connect inlet
• Heavy-duty aluminium cleaning bar
• Ideal for professional, commercial and home workshop use

Clean Hard-to-Reach Vehicle Undercarriages

Mud, dirt, salt and road grime can accumulate underneath vehicles in areas that are difficult to reach with a conventional pressure washer lance.

The 500mm (20") Underbody Cleaning Wand allows high-pressure water to be directed upwards across the underside of the vehicle, helping remove built-up contamination from the chassis, suspension and other suitable underbody areas.

The wide cleaning head and extended wand allow the operator to simply roll the cleaner underneath the vehicle rather than having to crawl underneath with a pressure washer lance.

Ideal for 4WD & Off-Road Cleaning

For vehicles regularly driven through mud, sand, dirt or water, cleaning the underbody can be just as important as washing the visible exterior.

The Underbody Cleaning Wand is particularly useful for:

• 4WDs and off-road vehicles
• Cars and SUVs
• Utes and commercial vehicles
• Trucks
• Caravans and trailers
• Boat trailers
• Farm vehicles
• ATVs and side-by-sides
• Construction and earthmoving equipment
• Commercial vehicle fleets

Four High-Pressure Cleaning Jets

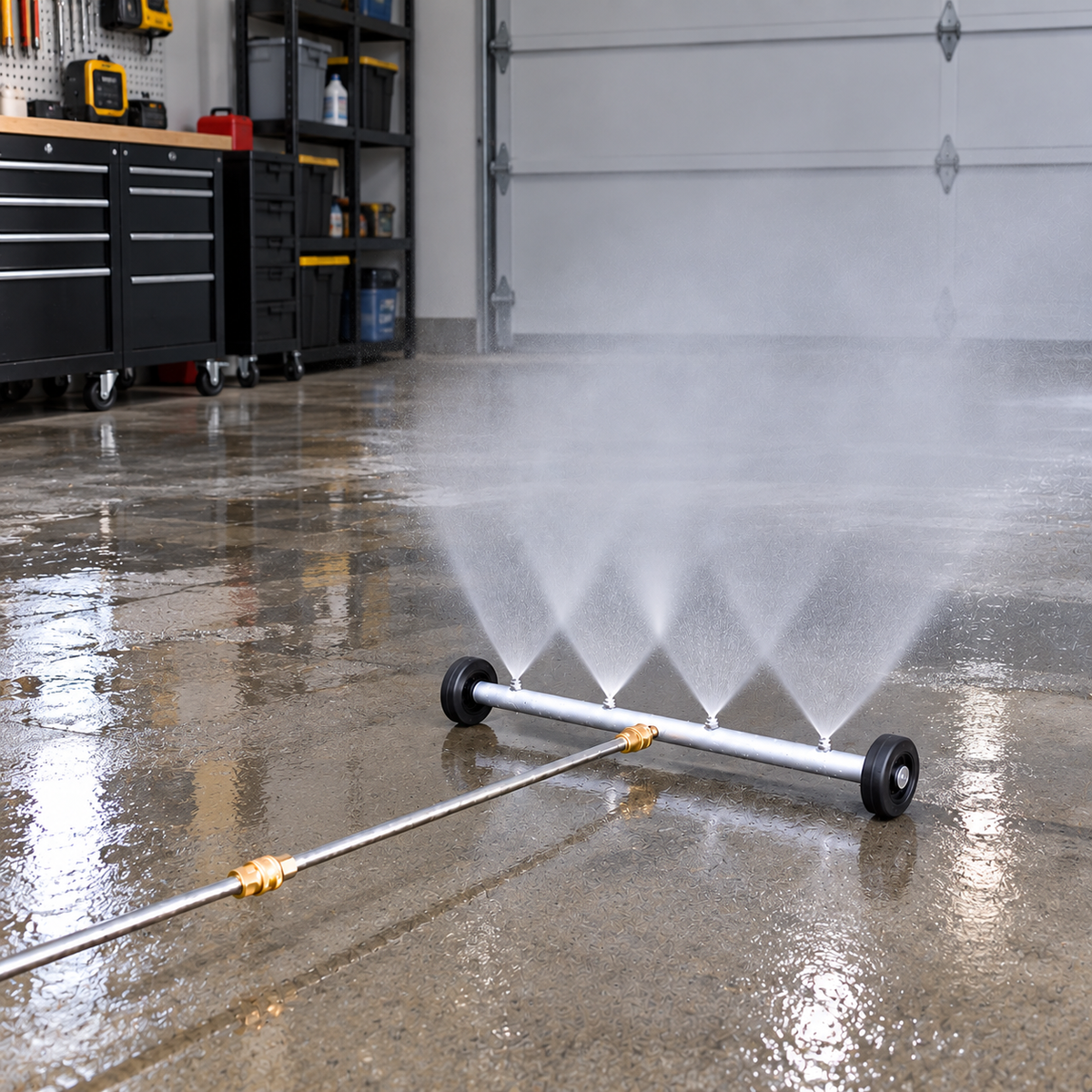

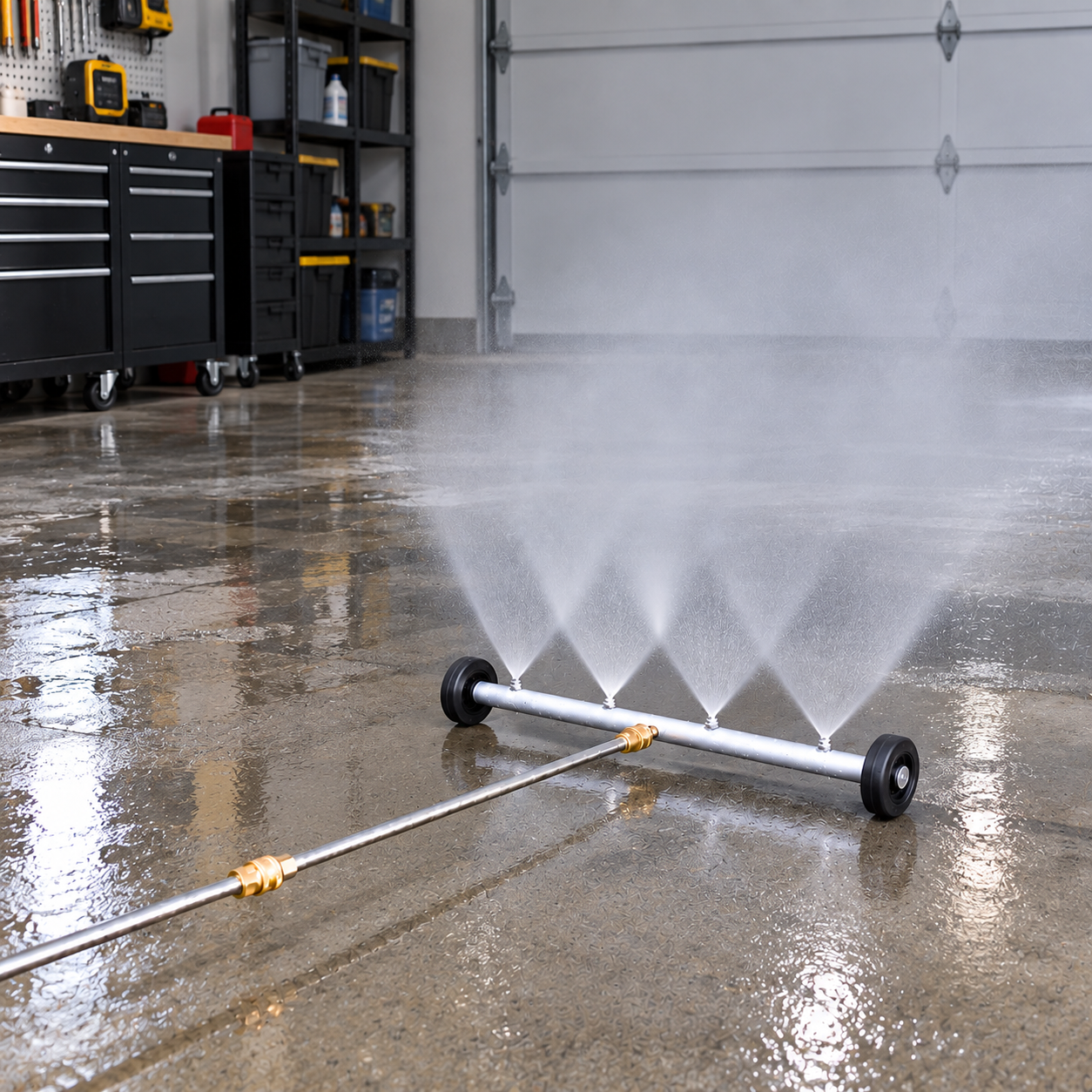

The 500mm (20") aluminium cleaning bar incorporates four high-pressure nozzles positioned to deliver powerful upward-facing water jets across the underside of the vehicle.

With four jets working simultaneously, the cleaner provides broad and consistent coverage, allowing larger underbody areas to be washed more efficiently than working with a single pressure washer nozzle.

500mm (20") Cleaning Width

The generous 500mm (20") cleaning width provides excellent coverage with each pass. Simply roll the cleaner backwards and forwards underneath the vehicle to progressively clean the undercarriage.

The wheeled design helps maintain the cleaning head at a consistent distance from the vehicle while allowing it to move smoothly across suitable workshop floors, driveways and other hard surfaces.

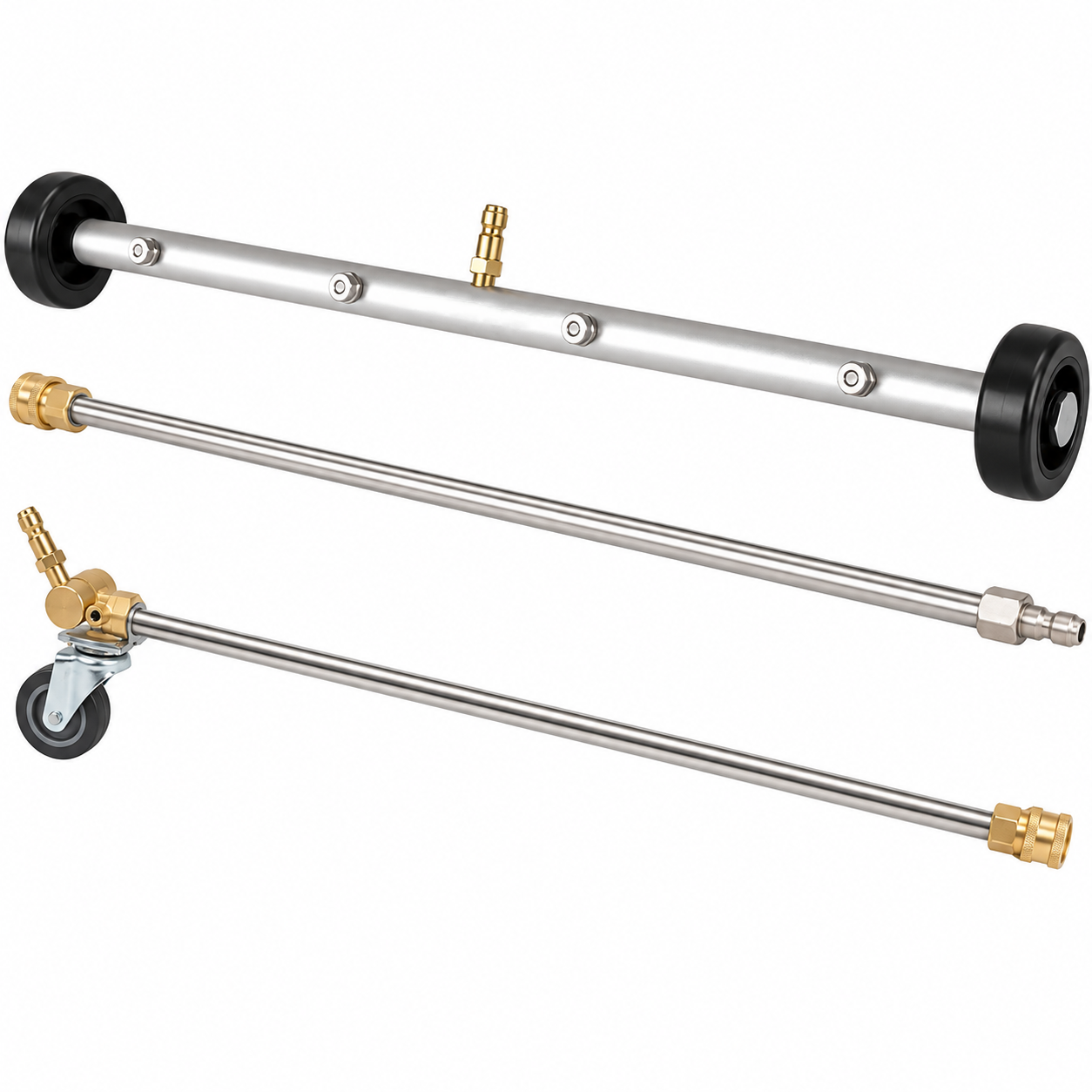

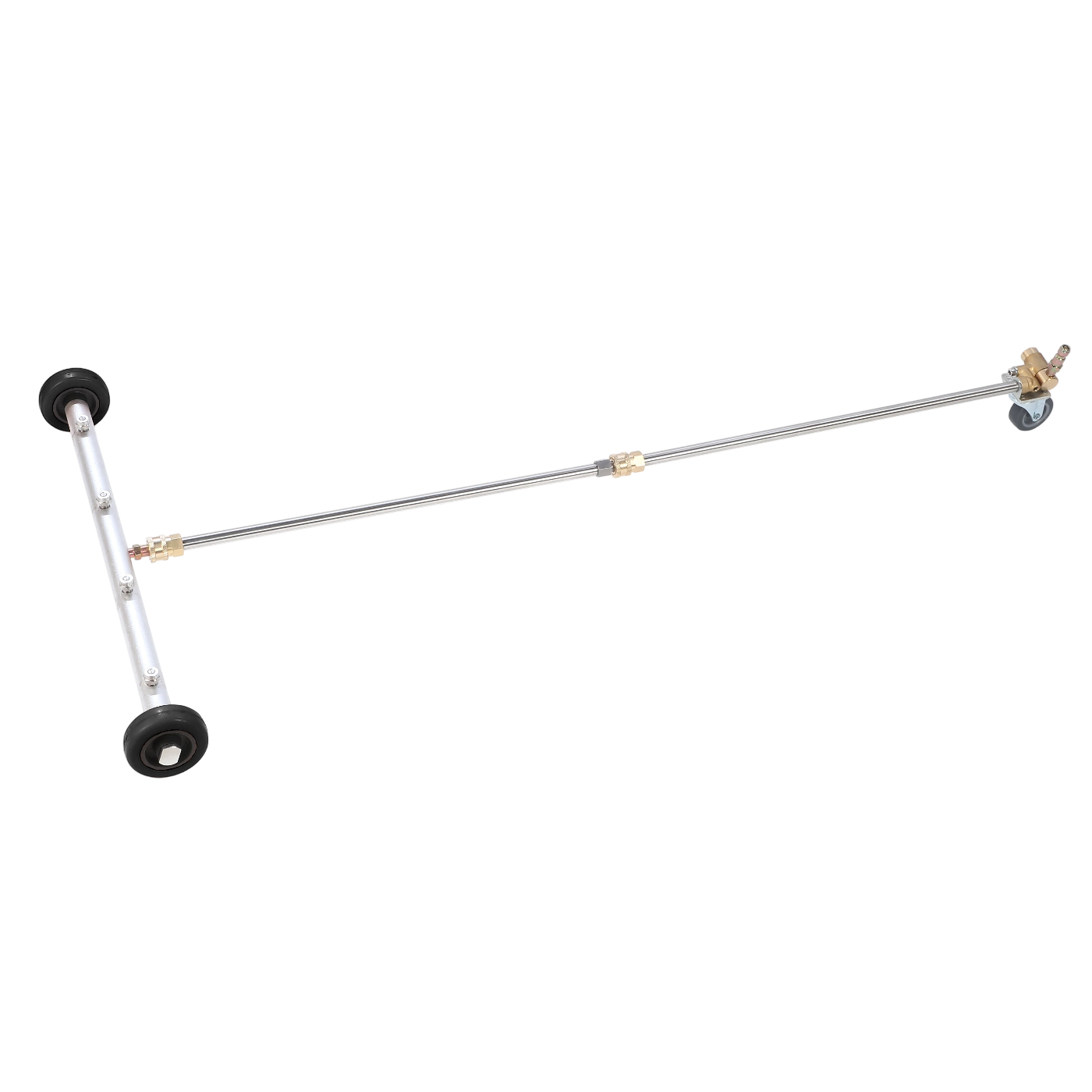

914mm (36") Extension Wand

A 914mm (36") extension wand provides the reach required to clean well underneath cars, 4WDs, trucks and trailers while allowing the operator to remain clear of the spray area.

This makes regular underbody washing faster, easier and more comfortable than attempting to reach underneath a vehicle with a conventional pressure washer lance.

Great for Coastal, Beach & Off-Road Vehicles

Vehicles used around beaches, coastal areas, muddy tracks, farms and construction sites can quickly accumulate sand, salt, mud and other contaminants underneath the vehicle.

Regular underbody rinsing can help remove this build-up from accessible surfaces, making the Underbody Cleaning Wand a useful addition to the cleaning equipment of 4WD owners, farmers, workshops and commercial vehicle operators.

Suitable for Pressure Washers up to 4,000 PSI

The 500mm (20") Underbody Cleaning Wand is rated for pressure washers operating at up to 4,000 PSI / 275 bar and water temperatures up to 60°C.

For best performance, the pressure washer must provide sufficient water flow to effectively operate all four cleaning nozzles.

Connecting to Your Pressure Washer

The Underbody Cleaning Wand is supplied with a 1/4" quick-connect inlet for connection to compatible pressure washer equipment.

The supplied connection may not directly suit every pressure washer brand or model. Scintex stocks a range of fittings and adapters which can assist with connecting to various pressure washer systems, including common Karcher, Gerni and Bosch connections.

Pressure Washer Hose Fittings

Pressure Washer Adapters

Underbody Cleaning Wand Specifications

Getting the Best Performance

Underbody cleaner performance depends on both pressure and water flow. As the cleaning head operates four nozzles simultaneously, sufficient water flow is important for achieving effective cleaning performance across the full 500mm (20") width.

Before purchasing, check the pressure, flow rate and connection of your pressure washer against the specifications above. If you're unsure whether your pressure washer is suitable, contact Scintex with the make and model of your machine.

Important

Exercise care when pressure cleaning underneath vehicles. Avoid directing high-pressure water at sensitive electrical components, connectors, exposed wiring, air intakes, seals or other components that may be damaged by high-pressure water.

Always follow the vehicle or equipment manufacturer's cleaning and maintenance recommendations.
