LiFePO4 vs AGM Batteries: Which Is Better for Your 4WD, Boat or Caravan?

When choosing an auxiliary battery for your 4WD, boat, caravan or camper, two of the most common options areLiFePO4 lithium batteries and AGM lead-acid batteries.

Both battery types can provide reliable power, but they differ significantly in weight, usable capacity, charging performance, lifespan and overall cost.

For many modern touring, marine and off-grid applications, LiFePO4 technology offers some important advantages. However, AGM batteries can still make sense in certain situations.

This guide explains the key differences between LiFePO4 vs AGM batteries and helps you decide which option is better suited to your setup.

What Is an AGM Battery?

AGM stands for Absorbent Glass Mat.

It is a type of sealed lead-acid battery where the electrolyte is absorbed into fibreglass mats between the battery plates.

AGM batteries have been widely used for years in:

• 4WD dual battery systems

• Caravans and campers

• Boats

• Backup power systems

• Solar installations

They are generally more resistant to vibration and leakage than traditional flooded lead-acid batteries and require very little maintenance.

What Is a LiFePO4 Battery?

LiFePO4 stands for Lithium Iron Phosphate.

It is a type of lithium battery chemistry designed to provide high usable capacity, low weight, long cycle life and strong charging performance.

LiFePO4 batteries are now commonly used in:

• 4WD touring systems

• Caravans

• Camper trailers

• Boats

• Trolling motors

• Off-grid systems

• Portable power systems

Modern LiFePO4 batteries also usually include an integrated Battery Management System (BMS) to help protect the battery against conditions such as overcharging, excessive discharge, short circuits and temperature extremes.

LiFePO4 vs AGM at a Glance

Feature	LiFePO4 Lithium	AGM
Weight	Much lighter	Heavier
Usable Capacity	Higher	Lower
Cycle Life	Generally much longer	Shorter
Charging Speed	Faster	Slower
Voltage Stability	More consistent	Drops progressively
Initial Cost	Higher	Lower
Long-Term Value	Often better	Can cost more over repeated replacements
Bluetooth Monitoring	Available on many models	Generally not integrated
High-Current Performance	Excellent when correctly specified	Good, but affected by voltage sag
Maintenance	Very low	Very low



Weight: Lithium Has a Major Advantage

One of the biggest differences between LiFePO4 and AGM batteries is weight.

AGM batteries contain lead, which makes them heavy.

LiFePO4 batteries can provide similar or greater usable energy at significantly lower weight.

This can make a major difference in applications where weight matters, including:

• 4WD touring

• Boats

• Caravans

• Camper trailers

Reducing battery weight can help free up payload capacity for fuel, water, camping equipment and other accessories.

For boats, a lighter battery can also make handling and installation easier.

Usable Capacity: Why 100Ah Doesn't Always Mean 100Ah

Battery capacity is usually measured in amp-hours, or Ah.

A common mistake is assuming that a 100Ah AGM battery and a 100Ah lithium battery provide exactly the same usable energy.

In real-world use, AGM batteries are generally treated more conservatively because regularly discharging them deeply can shorten their service life.

LiFePO4 batteries are typically designed to allow a much greater percentage of their rated capacity to be used.

This means a lithium battery can often provide significantly more practical usable energy than an AGM battery with the same Ah rating.

For touring applications, this can mean:

• Longer fridge run times

• More lighting

• More device charging

• Greater inverter use

• Longer periods between charging

LiFePO4 Batteries Maintain Voltage Better

Another important difference is how the battery voltage behaves during discharge.

AGM battery voltage gradually falls as the battery is discharged.

LiFePO4 batteries maintain a relatively stable voltage through much of their discharge cycle.

This can help equipment operate more consistently.

For example, fridges, pumps, lighting and other 12V accessories can receive a more stable supply voltage for longer.

Towards the end of its usable capacity, the lithium battery voltage will eventually drop and the BMS may disconnect the load to protect the battery.

Charging Speed

LiFePO4 batteries can generally accept charge faster than AGM batteries when paired with suitable charging equipment.

This can be particularly useful for 4WD and caravan owners who may only have a limited amount of driving time available to recharge their auxiliary battery.

Faster charging can also be beneficial when using:

• DC/DC chargers

• Solar systems

• AC battery chargers

• Marine charging systems

However, lithium batteries should always be used with charging equipment that is suitable for LiFePO4 chemistry.

An older AGM charger may not provide the correct charging profile for a lithium battery.

Cycle Life and Battery Longevity

Cycle life refers to how many times a battery can be charged and discharged before its capacity significantly reduces.

LiFePO4 batteries generally offer a considerably longer cycle life than AGM batteries when used within their specified operating conditions.

This can make lithium especially attractive for users who regularly cycle their batteries, such as:

• Full-time travellers

• Frequent campers

• Boaters

• Caravan owners

• Off-grid users

Although a lithium battery normally costs more upfront, its longer service life can help offset the purchase price over time.

AGM Batteries Cost Less Upfront

One area where AGM still has a clear advantage is initial purchase price.

AGM batteries are generally cheaper to buy than LiFePO4 batteries.

For a basic setup that is used only occasionally, an AGM battery may still provide a cost-effective solution.

For example, AGM might make sense where:

• The battery is rarely used

• Weight isn't important

• Available capacity requirements are modest

• The existing charging system is designed around lead-acid batteries

• The lowest initial purchase price is the main priority

The important distinction is initial cost versus lifetime value.

A cheaper battery isn't necessarily cheaper over the life of the system if it needs to be replaced more frequently.

LiFePO4 Is Better Suited to Frequent Cycling

Lithium batteries are particularly well suited to applications where the battery is repeatedly discharged and recharged.

A typical touring setup might run a fridge overnight, recharge while driving the following day and repeat this cycle throughout a trip.

This type of regular cycling is where LiFePO4 technology can provide a significant advantage.

AGM batteries can perform well in these applications too, but repeated deeper discharges can reduce their lifespan more quickly.

Bluetooth Battery Monitoring

Another advantage available with many modern LiFePO4 batteries is Bluetooth battery monitoring.

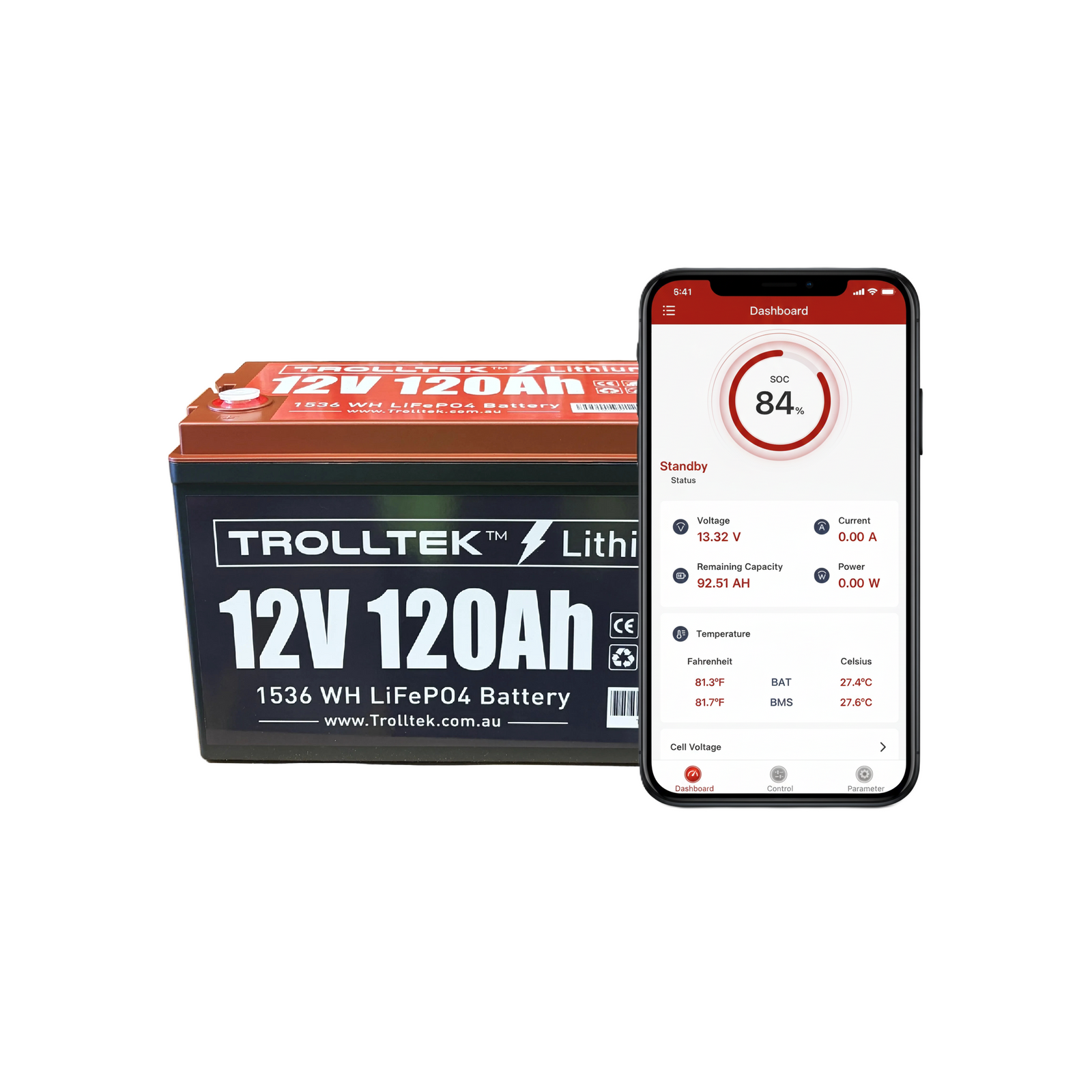

Trolltek™ lithium batteries feature Bluetooth monitoring, allowing you to view battery information through a compatible smartphone app.

Depending on the battery model, this can provide information such as:

• State of charge

• Battery voltage

• Charge current

• Discharge current

• Remaining capacity

• Battery temperature

• BMS status

This can make it much easier to understand how much power you have remaining and how your charging system is performing.

Traditional AGM batteries generally require an additional external battery monitor if you want comparable information.

Battery Management System Protection

LiFePO4 batteries commonly incorporate a Battery Management System, or BMS.

The BMS is designed to monitor and protect the battery.

Depending on the battery design, protection may include:

• High voltage

• Low voltage

• Excessive current

• Short circuit

• High temperature

• Low temperature

• Cell balancing

AGM batteries do not normally contain an equivalent integrated electronic management system.

This makes the BMS an important part of any lithium battery and one of the specifications worth checking when comparing products.

Which Is Better for a 4WD?

For most modern touring 4WD builds, LiFePO4 has become an attractive option.

Advantages include:

• Lower weight

• Greater usable capacity

• Faster charging

• Longer cycle life

• Strong voltage stability

• Bluetooth monitoring

• Slimline battery options

A slimline lithium battery can also be installed in locations that may be difficult to use with a conventional AGM battery, such as behind seats or against the wall of a canopy.

AGM may still be suitable for a basic or occasional-use setup where initial cost is more important than weight or long-term performance.

Which Is Better for a Caravan?

Caravans can place considerable demand on auxiliary batteries.

Common loads include:

• Fridges

• Water pumps

• Lighting

• TVs

• Fans

• Device charging

• Diesel heater systems

• Inverters

For caravans that regularly spend time off-grid, the greater usable capacity and cycling performance of LiFePO4 can be a significant advantage.

Lithium can also reduce the weight of a larger battery bank, helping manage overall caravan payload.

Which Is Better for a Boat?

Both AGM and LiFePO4 batteries are used in marine applications, but lithium has become increasingly popular for auxiliary power and trolling motors.

Benefits can include:

• Lower battery weight

• Greater usable capacity

• Stable voltage

• Strong cycling performance

• Higher-voltage options such as 24V and 36V systems

For trolling motors in particular, reducing battery weight can be a major benefit.

As with any marine electrical installation, make sure the battery, charger and connected equipment are all compatible.

Can I Replace My AGM Battery With Lithium?

In many applications, yes, but it isn't always as simple as removing the AGM battery and dropping in a lithium replacement.

Before upgrading, check:

• Battery dimensions

• System voltage

• Charger compatibility

• DC/DC charger settings

• Solar regulator compatibility

• Maximum charge current

• Maximum discharge current

• Cable sizing

• Fuse ratings

• Inverter requirements

If your existing charger doesn't support LiFePO4 charging, it may need to be replaced or upgraded.

This is why a lithium battery upgrade is a good opportunity to review the entire electrical system.

Should I Choose the Same Ah Rating When Upgrading?

Not necessarily.

Because LiFePO4 batteries generally provide more usable capacity than AGM, you may not need to replace an AGM battery with exactly the same overall Ah capacity.

For example, the best lithium replacement will depend on:

• Your daily power consumption

• How frequently you recharge

• Solar availability

• DC/DC charger capacity

• Available installation space

• Weight limits

• Expected inverter loads

Rather than simply matching the old battery rating, calculate how much usable energy your system actually needs.

Don't Forget Your Charger

Charging equipment is one of the most important considerations when upgrading from AGM to lithium.

Depending on the application, you may require:

• Lithium-compatible AC charger

• DC/DC charger with a lithium charging profile

• Solar regulator suitable for lithium

• Appropriate marine charging equipment

Correct charging helps ensure you get the performance and service life expected from your battery.

Trolltek™ offers lithium battery bundles that combine compatible batteries and charging solutions, which can help simplify the upgrade process.

So, Is LiFePO4 Better Than AGM?

For many modern 4WD, caravan, marine and off-grid applications, LiFePO4 offers significant advantages over AGM.

Lithium is particularly attractive when you value:

• Lower weight

• Greater usable capacity

• Faster charging

• Longer battery life

• Better cycling performance

• Stable voltage

• Bluetooth monitoring

AGM remains a practical option when:

• Initial purchase price is the priority

• The battery is used infrequently

• Weight isn't a concern

• The existing charging system is already configured for AGM

• The application doesn't require deep or frequent cycling

Final Thoughts

AGM batteries have been a reliable choice for auxiliary power for many years and still have a place in simple, budget-focused systems.

However, for users who regularly tour, camp, boat or travel off-grid, LiFePO4 technology offers a combination of lower weight, more usable power, faster charging and longer service life that can make it the better long-term solution.

The key is to choose the battery based on your actual power requirements rather than focusing only on the Ah rating or initial purchase price.

Upgrade to Trolltek™ LiFePO4 Lithium

Trolltek™ offers a range of LiFePO4 lithium batteries, slimline batteries, AC chargers, DC/DC chargers, battery bundles and accessories for 4WD, marine, caravan, camping and off-grid applications.

Whether you're replacing an older AGM battery or building a complete lithium power system from scratch, Trolltek™ has solutions designed to help you build a lighter, more capable and easier-to-monitor battery setup.

Explore the Trolltek™ Lithium Battery range and Bundle Deals today.
